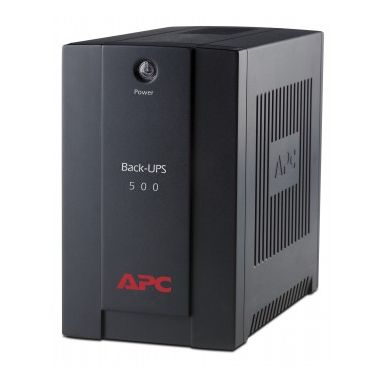

APC Back-UPS uninterruptible power supply UPS
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Power | |
|---|---|
| Output frequency regulation | 50 Hz |
| Output power | 300 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 280 V |
| Surge energy rating | 273 J |
| Maximum current | 2 A |
| Efficiency | 98.7% |
| Output power capacity | 0.5 kVA |
| Ports & interfaces | |
| Cable length | 1.83 m |
| AC outlets quantity | 3 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Number of output IEC jumpers | 1 |
| Performance | |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Audible alarm modes | Low battery alarm- Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Battery replacement |
| Surge protection | Yes |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Audible alarm modes | Low battery alarm- Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output frequency regulation | 50 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power | 300 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 280 V |
| Surge energy rating | 273 J |
| Maximum current | 2 A |
| Efficiency | 98.7% |
| Surge protection | Yes |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 0.5 kVA |
| Input frequency | 45/65 Hz |
| Battery | |
| Battery capacity | 47 VAh |
| Battery voltage | 12 V |
| Battery capacity | 7.2 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 7.6 min |
| Typical backup time at full load | 1.3 min |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| LED indicators | Battery replacement |
| Product colour | Black |
| Certification | CE- REACH- PEP- EOLI |
| Cable length | 1.83 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS- ENERGY STAR |
| Weight & dimensions | |
| Weight | 5.2 kg |
| Width | 115 mm |
| Height | 185 mm |
| Depth | 213 mm |
| Package width | 190 mm |
| Package depth | 291 mm |
| Package height | 257 mm |
| Package weight | 5.68 kg |
| Packaging data | |
| Manual | Yes |
| Package width | 190 mm |
| Package depth | 291 mm |
| Package height | 257 mm |
| Package weight | 5.68 kg |
| Logistics data | |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 60 pc(s) |
| Certificates | |
| Certification | CE- REACH- PEP- EOLI |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | |
| Manual | Yes |
