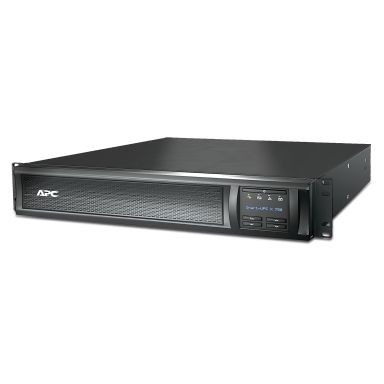

APC SMX750INC uninterruptible power supply UPS
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Specifications | |
|---|---|
| Power | |
| Output power | 600 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 645 J |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 750 VA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Auto-restart | Yes |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Temperature voltage compensation | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Web-based management | Yes |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Auto-restart | Yes |
| Output power | 600 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 645 J |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 750 VA |
| Temperature voltage compensation | Yes |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Cabling technology | 10/100Base-T |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 couplerIEC Jumpers |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Display | LED |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Management features | |
| Web-based management | Yes |
| Weight & dimensions | |
| Weight | 22 kg |
| Width | 432 mm |
| Height | 89 mm |
| Depth | 490 mm |
| Package width | 589 mm |
| Package depth | 620 mm |
| Package height | 246 mm |
| Package weight | 26.4 kg |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | RS-232USB cable |
| Resource CD | Yes |
| Rack mount kit | Yes |
| Software CD | Yes |
| Package width | 589 mm |
| Package depth | 620 mm |
| Package height | 246 mm |
| Package weight | 26.4 kg |
| Logistics data | |
| Quantity per pallet | 8 pc(s) |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | RS-232USB cable |
| Resource CD | Yes |
| Rack mount kit | Yes |
| Software CD | Yes |
