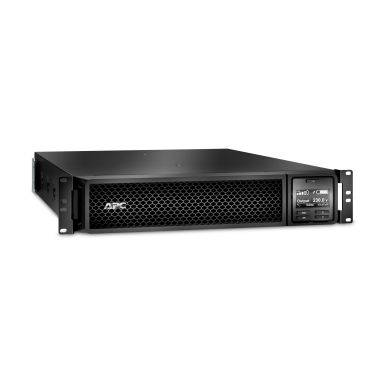

APC SRT2200RMXLI-NC uninterruptible power supply UPS
0 Reviews
| Add your review
In Stock
|
£2073.56
£2488.27 (Inc. VAT)
| Power | |
|---|---|
| Output power | 1980 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 340 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Output power capacity | 2.2 kVA |
| Ports & interfaces | |
| Cable length | 2.44 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | C13 coupler- C19 coupler |
| Number of output IEC jumpers | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| LED indicators | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 1980 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 340 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 2.2 kVA |
| Input frequency | 40 - 70 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 367 VAh |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 2U |
| Form factor | Rackmount |
| LED indicators | Yes |
| Product colour | Black |
| Display | LCD |
| Certification | CE- CE Mark- EAC- EN/IEC 62040-1- EN/IEC 62040-2- RCM- VDE |
| Cable length | 2.44 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output voltage | 230 V |
| Sustainability certificates | RoHS- ENERGY STAR |
| Weight & dimensions | |
| Weight | 25 kg |
| Width | 432 mm |
| Height | 85 mm |
| Depth | 584 mm |
| Package width | 599 mm |
| Package depth | 810 mm |
| Package height | 246 mm |
| Package weight | 34 kg |
| Packaging data | |
| Package width | 599 mm |
| Package depth | 810 mm |
| Package height | 246 mm |
| Package weight | 34 kg |
| Certificates | |
| Certification | CE- CE Mark- EAC- EN/IEC 62040-1- EN/IEC 62040-2- RCM- VDE |
| Other features | |
| Output voltage | 230 V |
