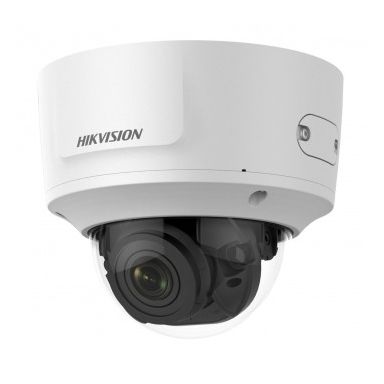

Hikvision DS-2CD2785G0-IZS IP security camera Indoor & outdoor Dome Ceiling 3840 x 2160 pixels
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| SPECIFICATIONS | |
|---|---|
| Product Description | Hikvision 8 MP IR Varifocal Dome Network Camera DS-2CD2785G0-IZS |
| Device Type | Network surveillance camera - fixed dome - weatherproof |
| Audio | Yes |
| Dimensions (WxDxH) | 6 in x 6 in x 5.2 in |
| Weight | 2.87 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night - NTSC PAL |
| Optical Zoom | 4.3 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 720p 1080p 4K |
| Optical Sensor Type | PS CMOS - 1/2" - 8 MP |
| Minimum Illumination | 0.008 lux - color - F1.2 - AGC on ¦ 0.011 lux - color - F1.4 - AGC on |
| Focal Length Control | Motorized zoom |
| Focal Length | 2.8 mm - 12 mm |
| Lens Mounting | F14 mount |
| Focus Adjustment | Automatic |
| Lens Iris | F/1.4 |
| Panning Range (degree) | 0 to 355 |
| Tilting Range (degree) | 0 to 75 |
| Interfaces | Composite video Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE Class 3 |
| Environmental Parameters (operating) | -22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | PCM G.726 G.711 G.722.1 MP2L2 |
| Connectivity Technology | Wired |
| Width | 6 in |
| Depth | 6 in |
| Height | 5.2 in |
| Weight | 2.87 lbs |
| Camera | |
| Type | Color - Day&Night - fixed dome - weatherproof |
| Video Format | NTSC PAL |
| Digital Video Format | MJPEG H.264 H.265 H.265+ H.264+ |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 720p 1080p 4K |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Image Sensor | |
| Type | 8 MP PS CMOS 1/2" |
| Lens Construction | |
| Type | F14 mount - motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.4 |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 46 - 112 |
| Vertical Field of View (degree) | 26 - 60 |
| Panning | |
| Range (degree) | 0 to 355 |
| Tilting | |
| Range (degree) | 0 to 75 |
| Interfaces | |
| Video | Composite video |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | |
| Supported Memory Cards | microSD Card microSDHC Card microSDXC Card |
| Miscellaneous | |
| Compliant Standards | IP67 IK10 IEEE 802.3af |
| Power | |
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 12.5 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.31 lbs |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Hikvision DS-2CD2785G0-IZS IP security camera Indoor & outdoor Dome Ceiling 3840 x 2160 pixels
| Length | 6 cm |
| Width | 6 cm |
| Height | 5.2 cm |
| Weight | 1.000000 kgs |
