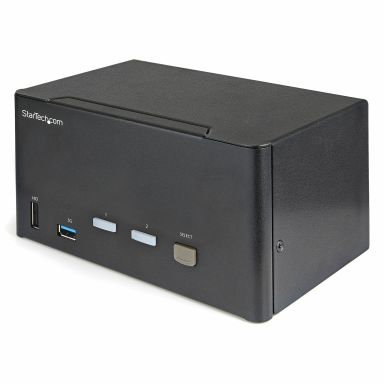

Startech.Com 2 Port Triple Monitor Displayport Kvm Switch - 4k 60hz Uhd Hdr
In Stock
|
£340.58
£408.70 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Console USB ports quantity
4
Console ports
3.5mm headphone, DisplayPort, USB A
DisplayPorts quantity
9
DisplayPort version
1.2
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
Headphone outputs
3
DC-in jack
Yes
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
HDCP
Yes
Performance
Daisy chain
No
HDCP
Yes
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
3840 x 2160 pixels
Scan interval
3,8,15,30 s
Audio channels
5.1
Number of displays supported
3
Technical details
Product colour
Black
Scan interval
3,8,15,30 s
Push button
Yes
On Screen Display (OSD)
No
LED indicators
Yes
Hot keys
Yes
IP control
No
USB hub
Yes
Design
Mean time between failures (MTBF)
156000 h
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Certification
CE, RoHS, FCC
Housing material
Steel
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Input current
1 A
Output current
3 A
Power plug type
Type M
Compatible power plug types
AU, EU, JP, UK, US
Output voltage
12 V
Power consumption (typical)
36 W
Input voltage
100 - 240 V
Video
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
3840 x 2160 pixels
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
160 mm
Depth
100 mm
Height
98 mm
Weight
850 g
Package width
238 mm
Package depth
189 mm
Package height
91 mm
Packaging data
Package width
238 mm
Package depth
189 mm
Package height
91 mm
Packaging content
Rubber feet
Yes
Quick installation guide
Yes
Certificates
Certification
CE, RoHS, FCC
Other features
IP control
No
Push button
Yes
Hot keys
Yes
Logistics data
Master (outer) case width
397 mm
Master (outer) case length
317 mm
Master (outer) case height
280 mm
Products per master (outer) case
6 pc(s)
Harmonized System (HS) code
85176200
Startech.Com 2 Port Triple Monitor Displayport Kvm Switch - 4k 60hz Uhd Hdr
| Length | 18.9 cm |
| Width | 23.8 cm |
| Height | 9.1 cm |
| Weight | 1.50 kgs |
