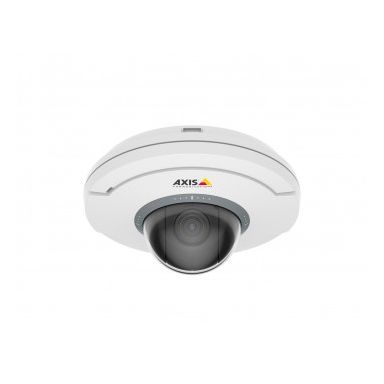

Axis M5055 IP security camera Indoor Dome Ceiling 1920 x 1080 pixels
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Specifications | |
|---|---|
| Performance | |
| Preset points | Yes |
| Number of languages | 11 |
| PTZ modes | Preset point |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control (Pan/Tilt/Zoom) | Yes |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Design | |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP51 |
| Housing material | Plastic |
| Camera | |
| Minimum illumination | 1.2 lx |
| Viewing angle horizontal | 71° |
| Viewing angle vertical | 40° |
| Tilt angle range | -45 - 45° |
| Tilt speed | 100 °/sec |
| Pan range | -179 - 179° |
| Pan speed | 100 °/sec |
| Camera shutter speed | 1/16000 - 1 s |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 4.85 mm (1 / 4.85") |
| Lens system | |
| Maximum aperture number | 2.5 |
| Auto focus | Yes |
| Minimum aperture number | 1.4 |
| Zoom capability | Yes |
| Optical zoom | 5x |
| Digital zoom | 10x |
| Focal length range (f-f) | 2.2 - 11 mm |
| Video | |
| Full HD | Yes |
| Image quality adjustment | BrightnessSharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | AVCH.264M-JPEGMPEG4 |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 320 x 1801920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Audio | |
| Voice codecs | G.711G.726 |
| Built-in microphone | Yes |
| Audio formats supported | AACADPCMPCM |
| Networking | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3afIEEE 802.3at |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash)MicroSDHCMicroSDXC |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Ports & interfaces | |
| Interface | RJ-45 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| Security algorithms | HTTPS |
| IP address filtering | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Management features | |
| Web-based management | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 7.8 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 4.6 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Height | 63 mm |
| Diameter | 13 cm |
| Weight | 375 g |
| Packaging content | |
| Number of cameras | 1 |
| User guide | Yes |
| Other features | |
| Video compression formats | AVCH.264M-JPEGMPEG4 |
