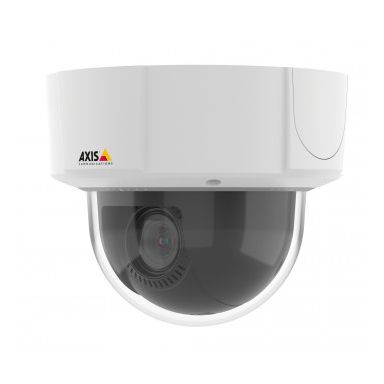

Axis M5525-E IP security camera Indoor & outdoor Dome Ceiling
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 11 |
| Type | IP security camera |
| Connectivity technology | Wired & Wireless |
| PTZ control (Pan/Tilt/Zoom) | Yes |
| Placement supported | Indoor & outdoor |
| Day/night mode | Yes |
| Design | |
| IK code | IK09 |
| Form factor | Dome |
| Product colour | Black-White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66 |
| Camera | |
| Minimum illumination | 0.01 lx |
| Viewing angle- horizontal | 61.8° |
| Viewing angle- vertical | 37.2° |
| Tilt angle range | 0 - 90° |
| Tilt speed | 150 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 150 °/sec |
| Angle of rotation | 180° |
| Camera shutter speed | 1/66500 - 2 s |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system | |
| Auto focus | Yes |
| Optical zoom | 10x |
| Digital zoom | 12x |
| Night vision | |
| Night vision | Yes |
| Video | |
| Privacy masking | Yes |
| Video compression formats | H.264-M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Audio | |
| Audio input channels | 2 |
| Audio system full duplex | Yes |
| Network | |
| Networking standards | IEEE 802.3af-IEEE 802.3at |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)-MicroSDHC-MicroSDXC |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
| Security | |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 13 W |
| Power consumption (Power over Ethernet (PoE)) | 6.6 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 6.3 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 165 mm |
| Height | 132 mm |
| Weight | 1.1 kg |
| Packaging content | |
| Number of cameras | 1 |
| Technical details | |
| Iris | Yes |
| Other features | |
| Video compression formats | H.264-M-JPEG |
Axis M5525-E IP security camera Indoor & outdoor Dome Ceiling
