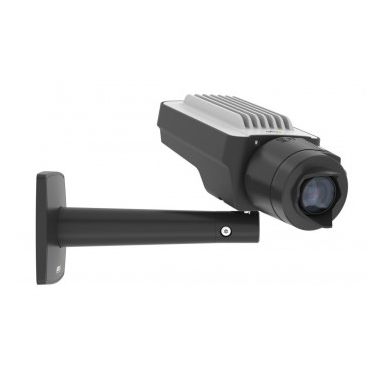

Axis Q1645 IP security camera Box Wall 1920 x 1080 pixels
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Specifications | |
|---|---|
| Performance | |
| Infrared (IR) cut-off filter | Yes |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control (Pan/Tilt/Zoom) | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| Form factor | Box |
| Product colour | BlackSilver |
| Mounting type | Wall |
| LED indicators | Yes |
| Housing material | Zinc |
| Camera | |
| Minimum illumination | 0.004 lx |
| Viewing angle horizontal | 109° |
| Viewing angle vertical | 58° |
| Camera shutter speed | 1/100000 - 2 s |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Lens system | |
| Maximum aperture number | 1.5 |
| Focal length range (f-f) | 3.9 - 10 mm |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | BrightnessContrastSaturationSharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Video compression formats | H.264M-JPEGMPEG4 |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 320 x 1801920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Audio | |
| Sample rate | 48 kHz |
| Built-in microphone | Yes |
| Audio system | 2-way |
| Audio formats supported | ADPCMG.711G.726LC-AACOPUSPCM |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3afIEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | Yes |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| RS-485 ports | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Management features | |
| Remotely operated | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 9.5 W |
| Power consumption (Power over Ethernet (PoE)) | 9.1 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 4.5 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 82 mm |
| Depth | 210 mm |
| Height | 66 mm |
| Weight | 950 g |
| Packaging content | |
| Number of cameras | 1 |
| Quick installation guide | Yes |
| Technical details | |
| Lens type | Varifocal |
| Lens mount interface | CS mount |
| Removable IR-cut filter | Yes |
| Other features | |
| Video compression formats | H.264M-JPEGMPEG4 |
| Noise detection | Yes |
