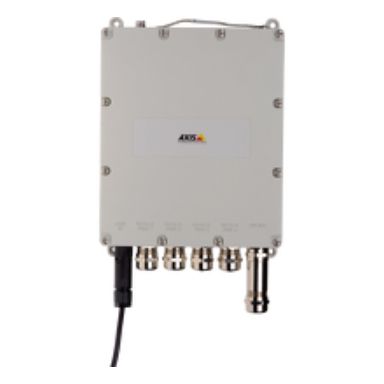

Axis T8504-E Managed Gigabit Power over Ethernet
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Power connector | DC-in jack |
| Virtual LAN features | |
| VLAN support | Yes |
| Power | |
| Power connector | DC-in jack |
| Surge protection voltage | 6 kV |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Surge protection | Yes |
| Technical details | |
| Product colour | White |
| Housing material | Aluminium |
| Management features | |
| Switch type | Managed |
| Network | |
| VLAN support | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 9216 |
| Throughput | 14.9 Mpps |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Password protection | Yes |
| Design | |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Housing material | Aluminium |
| Performance | |
| Plug and Play | Yes |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 150 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -40 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 240 mm |
| Depth | 166 mm |
| Height | 72 mm |
| Weight | 2.9 kg |
