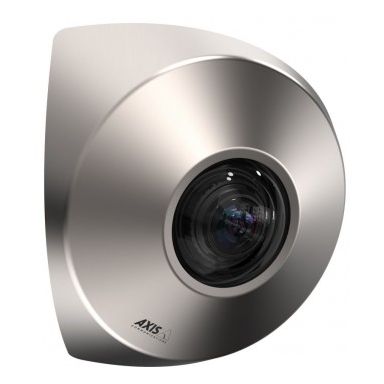

AXIS P91 Network Camera Series
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Performance
Number of languages
12
PTZ modes
Digital PTZ
Type
IP security camera
Connectivity technology
Wired
PTZ control (Pan/Tilt/Zoom)
Yes
Placement supported
Indoor
Wide Dynamic Range (WDR)
Yes
Design
IK code
IK10
Product colour
Brushed steel
Mounting type
Ceiling/Wall
Protection features
Dust resistantWaterproof
International Protection (IP) code
IP66
Housing material
AluminiumPolycarbonateStainless steelZinc
Camera
Minimum illumination
0.35 lx
Tilt angle range
-5 - 5°
Camera shutter speed
1/32500 - 1/5 s
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 3 mm (1 / 3")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
2.4
Fixed focus
Yes
Fixed focal length
1.8 mm
Video
Image quality adjustment
BrightnessContrastSaturationSharpness
Text caption overlay
Yes
Privacy masking
Yes
Bit rate control
Variable Bit Rate (VBR)
Video compression formats
AVCH.264M-JPEGMPEG4
Maximum resolution
2016 x 1512 pixels
Supported graphics resolutions
320 x 240640 x 3601920 x 1080 (HD 1080)
Frame rate
30 fps
Video streaming
Yes
Total megapixels
3 MP
Networking
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3afIEEE 802.3at
Quality of Service (QoS) support
Yes
Streaming method
Multicast
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)MicroSDHCMicroSDXC
Flash memory
256 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Alert notification type
E-mail
Video motion detection
Yes
Active tampering alarm
Yes
Power
Power source type
PoE
Power consumption (max)
3.2 W
Power consumption (Power over Ethernet (PoE))
2.8 W
Operational conditions
Operating temperature (T-T)
-15 - 55 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
15 - 85%
Weight & dimensions
Width
148 mm
Depth
125 mm
Height
93 mm
Weight
790 g
Packaging content
Number of cameras
1
Screws included
Yes
Quick installation guide
Yes
Other features
Video compression formats
AVCH.264M-JPEGMPEG4
AXIS P91 Network Camera Series
