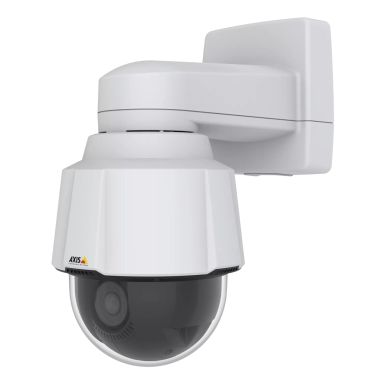

Axis 01681-001 security camera Dome IP security camera
0 Reviews
| Add your review
In Stock
|
£1651.65
£1981.98 (Inc. VAT)
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Design | |
| Weatherproof | Yes |
| IK code | IK10 |
| Fog proof | Yes |
| Form factor | Dome |
| Product colour | Black White |
| Mounting type | Ceiling/wall |
| Protection features | Shock resistant |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Camera | |
| Minimum illumination | 0.02 lx |
| Viewing angle horizontal | 58.7° |
| Viewing angle vertical | 35.7° |
| Tilt angle range | 0 - 180° |
| Tilt speed | 350 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 350 °/sec |
| Camera shutter speed | 1/66500 - 2 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 4 |
| Auto focus | Yes |
| Minimum aperture number | 1.4 |
| Zoom capability | Yes |
| Optical zoom | 32x |
| Digital zoom | 12x |
| Focal length range | 4.3 - 137.6 mm |
| Video | |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Maximum resolution | 1920 x 1080 pixels |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Audio | |
| Sample rate | 48 kHz |
| Audio system | 2-way |
| Audio formats supported | ADPCMLC-AACLPCMPCM |
| Audio detection | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1xIEEE 802.3at |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SDSDHCSDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Security | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Power | |
| Power source type | DC PoE |
| Power consumption (max) | 19 W |
| Power consumption (typical) | 10.5 W |
| DC-in jack | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 188 mm |
| Depth | 188 mm |
| Height | 217 mm |
| Weight | 2.5 kg |
Axis 01681-001 security camera Dome IP security camera
