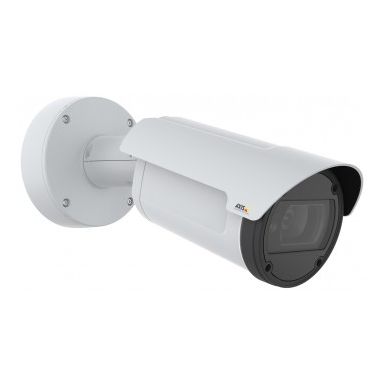

Axis Q1798-LE IP security camera Outdoor Bullet Ceiling/Wall
0 Reviews
| Add your review
In Stock
|
£1855.35
£2226.42 (Inc. VAT)
| Specifications | |
|---|---|
| Performance | |
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Day/night mode | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Bullet |
| Product colour | White |
| Mounting type | Ceiling/Wall |
| International Protection (IP) code | IP67 |
| Housing material | Plastic |
| Camera | |
| Minimum illumination | 0.006 lx |
| Viewing angle horizontal | 90° |
| Viewing angle vertical | 49° |
| Camera shutter speed | 1/45500 - 2 s |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 101.6 / 3 mm (4 / 3") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 1.7 |
| Auto focus | Yes |
| Minimum aperture number | 4 |
| Optical zoom | 4x |
| Focal length range (f-f) | 12 - 48 mm |
| Video | |
| Image quality adjustment | BrightnessContrastSaturationSharpness |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | AVCH.264H.265HEVCM-JPEGMPEG4 |
| Maximum resolution | 3712 x 2784 pixels |
| Supported graphics resolutions | 3840 x 2160 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 10 MP |
| Audio | |
| Voice codecs | G.711G.726PCM |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1xIEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash)MicroSDHCMicroSDXC |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Security algorithms | EAP-TLS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Power | |
| Power source type | ACDCPoE |
| Power consumption (Power over Ethernet (PoE)) | 24 W |
| AC input voltage | 20 - 24 V |
| Power consumption (typical) | 13.3 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Length | 36 cm |
| Diameter | 14.7 cm |
| Weight | 2.55 kg |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | AVCH.264H.265HEVCM-JPEGMPEG4 |
Axis Q1798-LE IP security camera Outdoor Bullet Ceiling/Wall
| Length | 15.5 cm |
| Width | 6.7 cm |
| Height | 9.3 cm |
| Weight | 2.550000 kgs |
