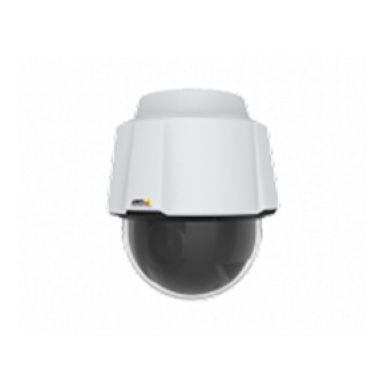

AXIS P5654-E PTZ Network Camera
In Stock
|
Call For Price
(0808 189 1246)
Performance
Preset points
Yes
Infrared (IR) cut-off filter
Yes
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Outdoor
Tour recording
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Design
IK code
IK10
Form factor
Dome
Product colour
White
Mounting type
Ceiling/wall
International Protection (IP) code
IP66
Housing material
Aluminium
Camera
Minimum illumination
0.01 lx
Viewing angle horizontal
77°
Viewing angle vertical
43.1°
Tilt angle range
0 - 180°
Tilt speed
350 °/sec
Pan range
0 - 360°
Pan speed
350 °/sec
Camera shutter speed
1/66500 - 2 s
Camera pan control
Yes
Camera tilt control
Yes
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
1.6
Auto focus
Yes
Minimum aperture number
4.5
Zoom capability
Yes
Optical zoom
21x
Digital zoom
12x
Focal length range
4 - 8.6 mm
Video
Text caption overlay
Yes
Privacy masking
Yes
Image stabilizer
Yes
Maximum resolution
1280 x 720 pixels
Frame rate
60 fps
Video streaming
Yes
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1xIEEE 802.3at
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Wi-Fi
No
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
SDSDHCSDXC
Internal memory
1024 MB
Flash memory
512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Password protection
Yes
Power
Power source type
AC PoE
Power consumption (max)
37 W
AC input voltage
100 - 240 V
Operational conditions
Operating temperature (T-T)
-30 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Height
217 mm
Diameter
18.8 cm
Weight
2.5 kg
