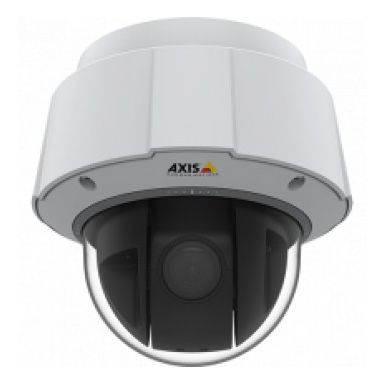

Axis 01973-002 security camera Dome IP security camera
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 11 |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control (Pan/Tilt/Zoom) | Yes |
| Placement supported | Indoor & outdoor |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| IK code | IK10 |
| Fog proof | Yes |
| Form factor | Dome |
| Product colour | Black-White |
| Mounting type | Ceiling/Wall |
| International Protection (IP) code | IP66- IP67 |
| Housing material | Aluminium-Polycarbonate |
| Camera | |
| Minimum illumination | 0.002 lx |
| Viewing angle- horizontal | 63.8° |
| Viewing angle- vertical | 38° |
| Tilt angle range | 0 - 220° |
| Tilt speed | 450 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 450 °/sec |
| Camera shutter speed | 1/11000 - 1/3 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 4.2 |
| Auto focus | Yes |
| Minimum aperture number | 1.6 |
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focal length range (f-f) | 4.25 - 127.5 mm |
| Video | |
| Image quality adjustment | Brightness- Color depth- Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | AVC-H.264-H.265-HEVC-M-JPEG-MPEG4 |
| Maximum resolution | 1280 x 720 pixels |
| Supported graphics resolutions | 320 x 180-1280 x 720 (HD 720) |
| Supported video modes | 720p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Networking | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x-IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD-SDHC-SDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Missing object-Tripwire |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Power | |
| Power source type | AC-PoE |
| Power consumption (max) | 51 W |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 14 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 232 mm |
| Depth | 232 mm |
| Height | 269 mm |
| Weight | 3.75 kg |
| Packaging content | |
| Number of cameras | 1 |
| Sun shield included | Yes |
| Manual | Yes |
| Other features | |
| Video compression formats | AVC-H.264-H.265-HEVC-M-JPEG-MPEG4 |
