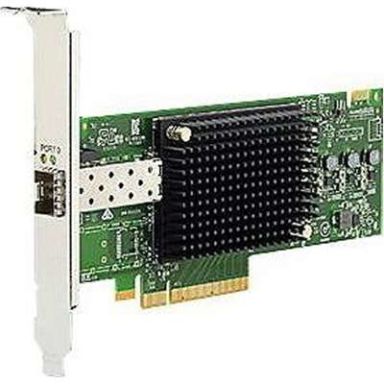

Lenovo 01CV830 networking card Internal Fiber 16000 Mbit/s
0 Reviews
| Add your review
In Stock
|
£540.85
£649.02 (Inc. VAT)
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Fiber ports quantity | 1 |
| Fiber optic connector | FC-SFP+ |
| Interface | Fiber |
| Host interface | PCIe |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 16000 Mbit/s |
| Technical details | |
| Compatible products | System x3500 M5 Type 5464 System x3550 M5 Type 5463 System x3550 M5 Type 8869 System x3650 M5 Type 5462 System x3650 M5 Type 8871 System x3750 M4 Type 8753 System x3850 X6 Type 6241 (E7 v2- E7 v3- and E7 v4) System x3950 X6 Type 6241 (E7 v2- E7 v3- and E7 v4) NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4) |
| Product colour | Black- Green- Silver |
| Rack mounting | Yes |
| Web-based management | Yes |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| PCI-SIG* SR-IOV Capable | Yes |
| Mean time between failures (MTBF) | 10000000 h |
| Sustainability certificates | RoHS |
| Software | |
| Linux operating systems supported | RedHat EL Linux 6.0-RedHat EL Linux 7.0-SuSE Linux 11-SuSE Linux 12.0 |
| Other operating systems supported | VMware vSphere ESXi |
| Indication | |
| LED indicators | Yes |
| Design | |
| Dell E-Value Code | ATZU |
| Compatible products | System x3500 M5 Type 5464 System x3550 M5 Type 5463 System x3550 M5 Type 8869 System x3650 M5 Type 5462 System x3650 M5 Type 8871 System x3750 M4 Type 8753 System x3850 X6 Type 6241 (E7 v2- E7 v3- and E7 v4) System x3950 X6 Type 6241 (E7 v2- E7 v3- and E7 v4) NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4) |
| Product colour | Black- Green- Silver |
| Rack mounting | Yes |
| Certification | AS/NZS CISPR22:2009+A1- Class A Australian EMC Framework (RCM) cUR recognized to CSA 22.2- No. 60950-1-07 EN55022:2010- Class A EN55024:2010 EN55032:2012 EU (CE Mark) FCC Rules- Part 15- Class A Industry Canada- ICES-003- Class A Japan VCCI- Class A Korea MSIP- Class A RoHS Compliant (Directive 2011/65/EU) TUV certified to EN60950-1+A11+A1+A12+A2 Taiwan BSMI- Class A UL recognized to UL60950-1 2nd Edition |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| Internal | Yes |
| Mean time between failures (MTBF) | 10000000 h |
| LED indicators | Yes |
| Rack capacity | 2U |
| Component for | Server |
| Network | |
| Web-based management | Yes |
| Maximum operating distance | 150 m |
| Full duplex | Yes |
| Maximum data transfer rate | 16000 Mbit/s |
| Performance | |
| Server operating systems supported | Windows Server 2012-Windows Server 2012 R2 |
| Compatible products | System x3500 M5 Type 5464 System x3550 M5 Type 5463 System x3550 M5 Type 8869 System x3650 M5 Type 5462 System x3650 M5 Type 8871 System x3750 M4 Type 8753 System x3850 X6 Type 6241 (E7 v2- E7 v3- and E7 v4) System x3950 X6 Type 6241 (E7 v2- E7 v3- and E7 v4) NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4) |
| Web-based management | Yes |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| Linux operating systems supported | RedHat EL Linux 6.0-RedHat EL Linux 7.0-SuSE Linux 11-SuSE Linux 12.0 |
| Other operating systems supported | VMware vSphere ESXi |
| PCI-SIG* SR-IOV Capable | Yes |
| Mean time between failures (MTBF) | 10000000 h |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Mounting brackets included | Yes |
| Low-profile bracket | Yes |
| Package type | Box |
| Quantity | 1 |
| System requirements | |
| Server operating systems supported | Windows Server 2012-Windows Server 2012 R2 |
| Linux operating systems supported | RedHat EL Linux 6.0-RedHat EL Linux 7.0-SuSE Linux 11-SuSE Linux 12.0 |
| Other operating systems supported | VMware vSphere ESXi |
| Weight & dimensions | |
| Depth | 168 mm |
| Height | 69 mm |
| Packaging data | |
| Mounting brackets included | Yes |
| Low-profile bracket | Yes |
| Package type | Box |
| Quantity | 1 |
| Certificates | |
| Certification | AS/NZS CISPR22:2009+A1- Class A Australian EMC Framework (RCM) cUR recognized to CSA 22.2- No. 60950-1-07 EN55022:2010- Class A EN55024:2010 EN55032:2012 EU (CE Mark) FCC Rules- Part 15- Class A Industry Canada- ICES-003- Class A Japan VCCI- Class A Korea MSIP- Class A RoHS Compliant (Directive 2011/65/EU) TUV certified to EN60950-1+A11+A1+A12+A2 Taiwan BSMI- Class A UL recognized to UL60950-1 2nd Edition |
| Other features | |
| Dell E-Value Code | ATZU |
| PCI-SIG* SR-IOV Capable | Yes |
Lenovo 01CV830 networking card Internal Fiber 16000 Mbit/s
