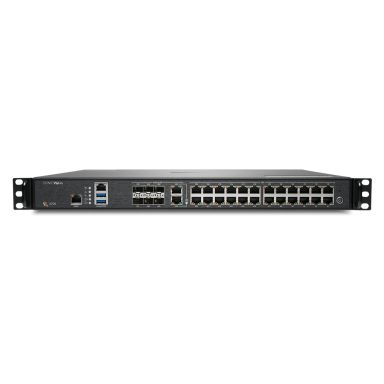

SonicWall NSA 5700 hardware firewall 1U 28 Gbit/s
In Stock
|
Call For Price (0808 189 1246)
Technical details
Rack mounting
Yes
Form factor
1U
Heat dissipation
436.82 BTU/h
Harmonized System (HS) code
85176990
Data transmission
Firewall throughput
28000 Mbit/s
VPN throughput
15000 Mbit/s
IPS/IDS throughput
17000 Mbit/s
Maximum firewall connections per second
228000
SSL inspection throughput
7000 Mbit/s
Maximum connections (DPI)
3500000
Maximum connections (SPI)
5000000
VoIP
Yes
Firewall throughput
28 Gbit/s
VPN throughput
15 Gbit/s
Performance
Certification
FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, NATEL, BSMI
Heat dissipation
436.82 BTU/h
Network
VPN tunnels quantity
6000
Local user database
2500
Quality of Service (QoS) support
Yes
Number of VLANs
512
Concurrent SSL/VPN connections (default)
350000
Number of LAN Access Points (max)
512
Security
Security algorithms
3DES, 64-bit AES, 128-bit AES, 256-bit AES, DES, MD5, SHA-1
Content filtering
HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Advanced persistent threat (APT) detection
Yes
Protocols
Supported network protocols
BGP4, OSPF, RIPv1/ v2, static routes, policyâbased routing
Hard drive
Total storage capacity
128 GB
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
SFP+ module slots quantity
6
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
24
Number of console ports
1
Storage
Total storage capacity
128 GB
Certificates
Certification
FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, NATEL, BSMI
Design
Rack mounting
Yes
Form factor
1U
Number of fans
2 fan(s)
Built-in fan
Yes
Power
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power supply
350 W
Power consumption (max)
128.1 W
Features
SSL inspection throughput
7000 Mbit/s
Logistics data
Harmonized System (HS) code
85176990
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Weight & dimensions
Weight
7.8 kg
Width
430 mm
Depth
465 mm
Height
45 mm
Packaging data
Package weight
13.5 kg
Other features
Firewall throughput
28000 Mbit/s
VPN throughput
15000 Mbit/s
SonicWall NSA 5700 hardware firewall 1U 28 Gbit/s
| Length | 46.50 cm |
| Width | 43.00 cm |
| Height | 4.50 cm |
| Weight | 13.50 kgs |
