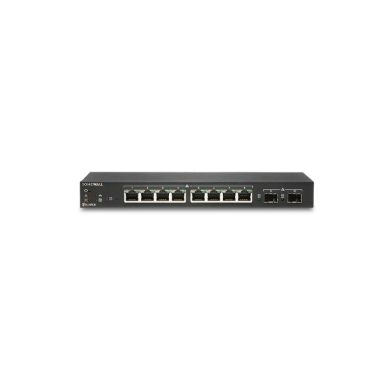

SonicWall SWS12-8POE Managed L2 Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
System event log
Yes
MIB support
MIB-II
Switch layer
L2
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Networking standards
IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
VLAN support
Yes
Port mirroring
Yes
Number of VLANs
4096
IP routing
Yes
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
Tagged VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4096
Virtual LAN features
Tagged VLAN
Data transmission
Number of VLANs
4096
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Jumbo frames support
Yes
Technical details
Product colour
Black
Mean time between failures (MTBF)
548553 h
Security
Security algorithms
802.1x RADIUS, HTTPS, SNMP, SSH
IGMP snooping
Yes
DHCP features
DHCP client, DHCP relay, DHCP snooping
Multicast features
Multicast support
Yes
Certificates
Certification
FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Memory
Internal memory
256 MB
Flash memory
32 MB
Design
Product colour
Black
LED indicators
LAN, PoE
Certification
FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Performance
Mean time between failures (MTBF)
548553 h
Internal memory
256 MB
Flash memory
32 MB
Harmonized System (HS) code
85176990
Indication
LED indicators
LAN, PoE
Power
Power consumption (max)
73.3 W
Power supply included
Yes
Input current
1.2 A
DC input voltage
54 V
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
55 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
249.5 BTU/h
Weight & dimensions
Width
240 mm
Depth
27 mm
Height
105 mm
Weight
640 g
Logistics data
Harmonized System (HS) code
85176990
