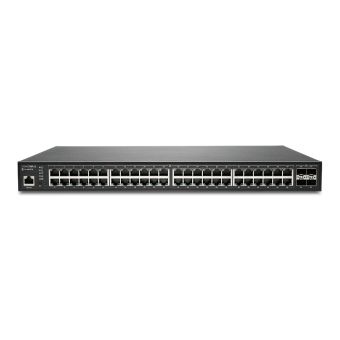

SonicWall SWS14-48FPOE Managed L2 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
In Stock
|
Call For Price (0808 189 1246)
SonicWall SWS14-48FPOE Managed L2 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
Write Your Own Review
Management features
Multicast support
Yes
Switch type
Managed
System event log
Yes
MIB support
MIB-II
Switch layer
L2
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Networking standards
IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
VLAN support
Yes
Port mirroring
Yes
Number of VLANs
4096
IP routing
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
Tagged VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4096
Virtual LAN features
Tagged VLAN
Data transmission
Number of VLANs
4096
MAC address table
32000 entries
Switching capacity
176 Gbit/s
Jumbo frames support
Yes
Technical details
Form factor
1U
Product colour
Black
Mean time between failures (MTBF)
100645 h
Rack mounting
Yes
Security
Security algorithms
802.1x RADIUS, HTTPS, SNMP, SSH
IGMP snooping
Yes
DHCP features
DHCP client, DHCP relay, DHCP snooping
Multicast features
Multicast support
Yes
Certificates
Certification
FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Memory
Internal memory
512 MB
Flash memory
128 MB
Design
Form factor
1U
Product colour
Black
LED indicators
LAN, PoE
Certification
FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Rack mounting
Yes
Number of fans
1 fan(s)
Performance
Mean time between failures (MTBF)
100645 h
Internal memory
512 MB
Flash memory
128 MB
Harmonized System (HS) code
85176990
Indication
LED indicators
LAN, PoE
Power
Power consumption (max)
530 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
12 A
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
740 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
1807.3 BTU/h
Weight & dimensions
Width
440 mm
Depth
44 mm
Height
310 mm
Weight
4.8 kg
Logistics data
Harmonized System (HS) code
85176990
| Length | 4.40 cm |
| Width | 44.00 cm |
| Height | 31.00 cm |
| Weight | 4.80 kgs |
