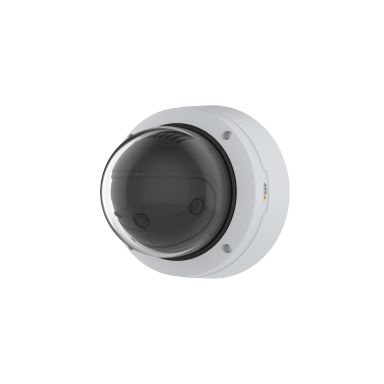

Axis 02060-001 security camera IP security camera Outdoor 5120 x 2560 pixels Ceiling/wall
In Stock
|
Call For Price
(0808 189 1246)
Performance
Infrared (IR) cut-off filter
Yes
Number of languages
11
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Type
IP security camera
Connectivity technology
Wired
Placement supported
Outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Certification
EAC, EN 55032 A, EN 55035, EN 50121-4,
IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35
IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IS 13252
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6,
IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78,
IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6)
NIST SP500-267
Design
IK code
IK10
Product colour
White
Mounting type
Ceiling/wall
International Protection (IP) code
IP66, IP67
Housing material
Aluminium, Polycarbonate (PC)
Camera
Minimum illumination
0.05 lx
Tilt angle range
0 - 50°
Pan range
-180 - 180°
Camera shutter speed
1/91000 - 1/25, 1/50000 - 1/25 s
Camera pan control
Yes
Camera tilt control
Yes
Lens viewing angle, horizontal
180°
Lens viewing angle, vertical
90°
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Lens system
Maximum aperture number
2
Fixed focal length
3.2 mm
Video
Noise reduction
Yes
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Video compression formats
AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Maximum resolution
5120 x 2560 pixels
Frame rate
30 fps
Video streaming
Yes
Total megapixels
13 MP
Audio
Voice codecs
G.711, G.726, OPUS
Audio system
2-way
Network
Bluetooth
No
Ethernet interface type
Gigabit Ethernet
Networking standards
IEEE 802.1x, IEEE 802.3at
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS , TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT, Syslog, Link-Local address (ZeroConf)
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Ports & interfaces
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Security algorithms
EAP-TLS, FIPS 140-2
IP address filtering
Yes
HTTPS encryption
Yes
Password protection
Yes
Management features
Web-based management
Yes
Power
Power source type
PoE
Power consumption (max)
18 W
Power consumption (typical)
11 W
Certificates
Certification
EAC, EN 55032 A, EN 55035, EN 50121-4,
IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35
IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IS 13252
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6,
IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78,
IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6)
NIST SP500-267
Operational conditions
Operating temperature (T-T)
-40 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
206 mm
Height
221 mm
Weight
2.2 kg
Packaging content
Number of cameras
1
Other features
Video compression formats
AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Logistics data
Harmonized System (HS) code
85258900
Axis 02060-001 security camera IP security camera Outdoor 5120 x 2560 pixels Ceiling/wall
