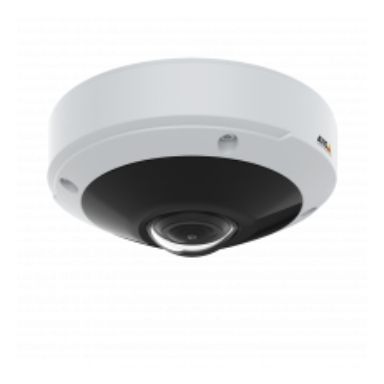

Axis M3057-PLVE Dome IP security camera Indoor Ceiling/wall
In Stock
|
Call For Price
(0808 189 1246)
Performance
Number of languages
12
PTZ modes
Digital PTZ
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Indoor
Tour recording
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
People counting function
Yes
Dynamic range
120 dB
Design
IK code
IK10
Form factor
Dome
Product colour
White
Mounting type
Ceiling/wall
International Protection (IP) code
IP66
Camera
Field of view (FOV) angle
360°
Camera shutter speed
1/16000 - 1 s
Lens viewing angle- horizontal
183°
Lens viewing angle- vertical
183°
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Lens system
Number of lenses
1
Fixed focus
Yes
Focus adjustment
2
Focal length range
1.56 mm
Video
Time stamp overlay
Yes
Text caption overlay
Yes
Gain control type
Auto
Video compression formats
H.264- H.265- M-JPEG
Maximum resolution
2016 x 2016 pixels
Frame rate
60 fps
Video streaming
Yes
Total megapixels
6 MP
Video intelligence analytic
Yes
Audio
Frequency range
50 - 60 Hz
Network
Ethernet LAN
Yes
Storage
Card reader integrated
Yes
Built-in HDD
Yes
HDD capacity
1 GB
Flash memory
512 MB
Ports & interfaces
Terminal block port
Yes
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Motion sensor
Yes
Video motion detection
Yes
Security algorithms
EAP-TLS- HTTPS
IP address filtering
Yes
HTTPS encryption
Yes
Password protection
Yes
Pixel counter
Yes
Power
Power source type
PoE
Power consumption (max)
11.9 W
Power consumption (Power over Ethernet (PoE))
8 W
Operational conditions
Operating temperature (T-T)
-40 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Height
66 mm
Diameter
14.9 cm
Weight
700 g
Axis M3057-PLVE Dome IP security camera Indoor Ceiling/wall
