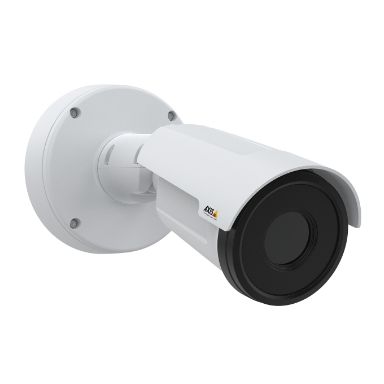

Axis Q1952-E IP security camera Outdoor Bullet 800 x 600 pixels Wall/Pole
In Stock
|
£5213.25
£6255.90 (Inc. VAT)
Performance
Number of languages
13
Languages support
English, Polish, Spanish, Italian, Portuguese, Japanese, Russian, Simplified Chinese, French, Korean, Traditional Chinese, German
Type
IP security camera
Connectivity technology
Wired
Placement supported
Outdoor
Certification
CISPR 24, CISPR 35, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A, VCCI Class A, IEC/EN/UL 60950-22, IEC/EN/UL 623681, IEC 60068-2-1, IEC/EN 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10b , ISO 21207 Method B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.72.2.9), NIST SP500-267
Thermal module
Yes
Design
IK code
IK10
Form factor
Bullet
Product colour
Black, White
Mounting type
Wall/Pole
International Protection (IP) code
IP66, IP67
Housing material
Aluminium, Polycarbonate (PC)
Camera
Lens viewing angle, horizontal
31°
Image sensor
Sensor type
Microbolometer
Effective sensor resolution (thermal module)
640 x 480 pixels
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
1.23
Closest focusing distance
8.5 m
Lens diameter
1.9 cm
Video
Image quality adjustment
Brightness, Contrast, Sharpness
Text caption overlay
Yes
Image stabilizer
Yes
Gain control type
Auto
Bit rate control
Variable Bit Rate (VBR)
Maximum resolution
800 x 600 pixels
Video formats supported
H.264, H.265, AVC, MPEG4, HEVC, M-JPEG
Frame rate
30 fps
Video streaming
Yes
Audio
Audio system
2-way
Audio formats supported
G.711, G.726, AAC-LC, LPCM, ADPCM, PCM
Network
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Networking standards
IEEE 802.3af, IEEE 802.3at
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Supported network protocols
IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1, Syslog
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory
1024 MB
Flash memory
512 MB
Ports & interfaces
Terminal block port
Yes
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Alert notification type
E-mail
Security algorithms
EAP-TLS
IP address filtering
Yes
HTTPS encryption
Yes
Password protection
Yes
Digest authentication
Yes
Power
Power source type
DC, PoE
Power consumption (max)
12.95 W
Power consumption (typical)
5.4 W
DC output voltage
12, 28
Certificates
Certification
CISPR 24, CISPR 35, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A, VCCI Class A, IEC/EN/UL 60950-22, IEC/EN/UL 623681, IEC 60068-2-1, IEC/EN 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10b , ISO 21207 Method B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.72.2.9), NIST SP500-267
Operational conditions
Operating temperature (T-T)
-40 - 60 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Weight & dimensions
Width
132 mm
Depth
272 mm
Height
132 mm
Weight
1.4 kg
Packaging content
Number of cameras
1
Sun shield included
Yes
Mounting kit
Yes
Manual
Yes
Technical details
Doesn't contain
PVC/BFR
Logistics data
Harmonized System (HS) code
85258900
