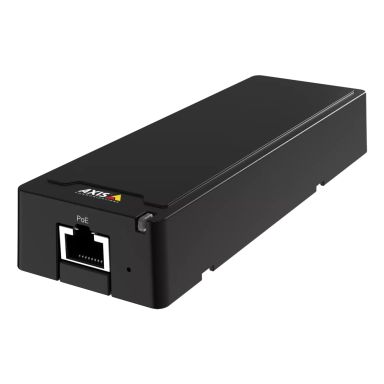

Axis FA51

Housing material

Aluminium

Brand compatibility

Axis

Placement supported

Indoor

Product colour

Black

Certification

EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC 15 B / A, ICES-3(A)/NMB-3(A), KC KN32 A, KC KN35, RCM AS/NZS CISPR 32 A, VCCI A IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1 IEC/EN 60529 IP4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267

Maximum number of cameras supported

1

LED indicators

Yes

Resolution

1920 x 1080 pixels

Number of inputs

1 inputs

Number of outputs

1 outputs

Resolution

1920 x 1080 pixels

Number of inputs

1 inputs

Number of outputs

1 outputs

Wi-Fi

No

Connectivity technology

Wired

Ethernet LAN

Yes

Ethernet LAN data rates

10,100 Mbit/s

Output voltage

12 V

Power consumption (typical)

5.2 W

Placement supported

Indoor

Doesn't contain

BFR, PVC

Harmonized System (HS) code

85299020

Width

24 mm

Weight

195 g

Height

49 mm

Depth

152 mm

Product colour

Black

Quantity per pack

1 pc(s)

Quick installation guide

Yes

Operating relative humidity (H-H)

10 - 85%

Storage temperature (T-T)

-40 - 65 °C

Storage relative humidity (H-H)

10 - 85%

Operating temperature (T-T)

-20 - 50 °C

Certification

EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC 15 B / A, ICES-3(A)/NMB-3(A), KC KN32 A, KC KN35, RCM AS/NZS CISPR 32 A, VCCI A IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1 IEC/EN 60529 IP4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267

Harmonized System (HS) code

85299020
