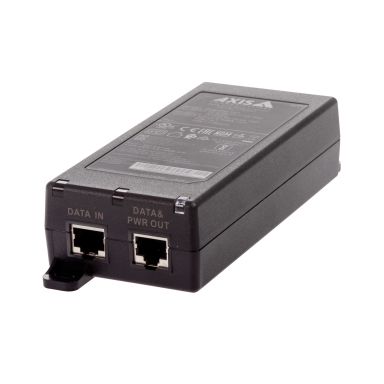

Axis 02208-001 PoE adapter Fast Ethernet, Gigabit Ethernet 56 V
In Stock
|
$137.85
$165.42 (Inc. VAT)
Network
Networking standards
IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Power over Ethernet (PoE) voltage
56 V
Features
Wall mountable
Yes
Product colour
Black
Networking standards
IEEE 802.3af, IEEE 802.3at
LED indicators
Yes
Certification
IS 13252, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27, 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, EAC
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
RJ-45 input ports
1
RJ-45 output ports
1
Power
Output power
30 W
Power over Ethernet (PoE) voltage
56 V
Input voltage
10-18 V
Technical details
Input voltage
10-18 V
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Doesn't contain
PVC
Harmonized System (HS) code
85044095
Operational conditions
Storage temperature (T-T)
-40 - 75 °C
Operating temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions
Weight
233 g
Width
65 mm
Depth
164 mm
Height
37 mm
Certificates
Certification
IS 13252, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27, 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, EAC
Indication
LED indicators
Yes
Logistics data
Harmonized System (HS) code
85044095
Axis 02208-001 PoE adapter Fast Ethernet, Gigabit Ethernet 56 V
