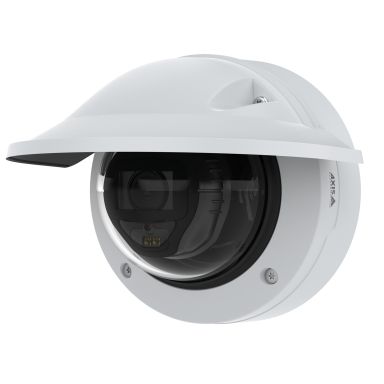

Axis 02330-001 security camera Dome IP security camera Outdoor 2592 x 1944 pixels Ceiling/wall
In Stock
|
Call For Price
(0808 189 1246)
Performance
Infrared (IR) cut-off filter
Yes
Number of languages
12
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
PTZ modes
Digital PTZ
Type
IP security camera
Connectivity technology
Wired
Placement supported
Outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Certification
EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2,
EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,
KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A,
VCCI Class A
Design
IK code
IK10
Form factor
Dome
Product colour
White
Mounting type
Ceiling/wall
International Protection (IP) code
IP66
Housing material
Polycarbonate (PC)
Camera
Minimum illumination
0.13 lx
Tilt angle range
-10 - 80°
Pan range
-190 - 190°
Angle of rotation
190°
Camera shutter speed
1/33500 - 1/5 s
Camera pan control
Yes
Camera tilt control
Yes
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.7 mm (1 / 2.7")
Number of sensors
1
Lens system
Number of lenses
1
Zoom capability
Yes
Normal focusing range
1 m
Focal length range
3 - 8 mm
Night vision
Night vision
Yes
Night vision distance
40 m
LED type
IR
Infra-red wavelength
850 nm
Video
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Text caption overlay
Yes
Privacy masking
Yes
Flip & mirror
Yes
Gain control type
Auto
Smart IR
Yes
Bit rate control
Variable Bit Rate (VBR)
Video compression formats
H.264, H.265, M-JPEG
Maximum resolution
2592 x 1944 pixels
Frame rate
30 fps
Video streaming
Yes
Total megapixels
5 MP
Video recording
Yes
Audio
Audio detection
Yes
Network
Bluetooth
No
Networking standards
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory
2048 MB
Flash memory
8192 MB
Ports & interfaces
Terminal block port
Yes
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Alert notification type
E-mail
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Active tampering alarm
Yes
Password protection
Yes
Power
Power source type
PoE
Power consumption (max)
12.1 W
Power consumption (typical)
6.4 W
Certificates
Certification
EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2,
EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,
KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A,
VCCI Class A
Operational conditions
Operating temperature (T-T)
-40 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Height
107 mm
Diameter
14.9 cm
Weight
900 g
Packaging content
Number of cameras
1
Manual
Yes
Drilling template included
Yes
Other features
Video compression formats
H.264, H.265, M-JPEG
Axis 02330-001 security camera Dome IP security camera Outdoor 2592 x 1944 pixels Ceiling/wall
