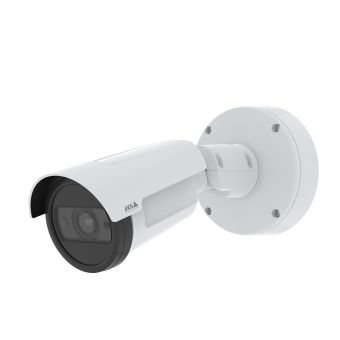

Axis 02340-001 Security Camera Bullet Ip Security Camera

Fog proof

Yes

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Indoor & outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

IK code

IK10

Fog proof

Yes

Form factor

Bullet

Product colour

White

Mounting type

Wall/Pole

Protection features

Vandal proof

International Protection (IP) code

IP67

Housing material

Aluminium, Polycarbonate (PC)

Minimum illumination

0.01 lx

Camera shutter speed

1/71500 - 2 s

Camera pixel size

2.9 µm

Lens viewing angle, horizontal

117°

Lens viewing angle, vertical

59°

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Signal-to-Noise Ratio (SNR) (panoramic camera)

55 dB

Auto focus

Yes

Closest focusing distance

0.5 m

Zoom capability

Yes

Lens diameter

2.9 cm

Night vision

Yes

Night vision distance

40 m

LED type

IR

Noise reduction

Yes

Privacy masking

Yes

Noise reduction technology

2D noise reduction, 3D noise reduction

Video compression formats

AVC, H.264, H.265, HEVC, MPEG4

Maximum resolution

1920 x 1080 pixels

Frame rate

60 fps

Video streaming

Yes

Bluetooth

No

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Networking standards

IEEE 802.1x

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, HTTP/2, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Internal memory

1024 MB

Flash memory

8192 MB

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Connectivity technology

Wired

Security algorithms

EAP-TLS, HTTPS, TLS

HTTPS encryption

Yes

Power source type

DC, PoE

Power consumption (max)

12.95 W

Power consumption (Power over Ethernet (PoE))

7.9 W

Power consumption (typical)

7.2 W

DC-in jack

Yes

DC output voltage

10, 28

Operating temperature (T-T)

-40 - 60 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 100%

Storage relative humidity (H-H)

5 - 95%

Length

280 mm

Diameter

13.2 cm

Weight

1.2 kg

Number of cameras

1

Video compression formats

AVC, H.264, H.265, HEVC, MPEG4
