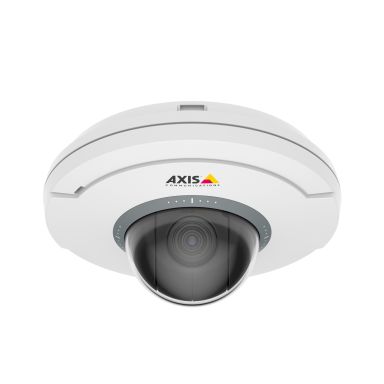

Axis 02345-001 security camera Dome IP security camera Indoor 1280 x 720 pixels Ceiling/wall

Number of languages

12

Languages support

Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian

Processor model

ARTPEC-7

PTZ modes

Digital PTZ

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Indoor

Day/night mode

Yes

Certification

EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 IEC/EN 60529 IP51 NIST SP500-267

Form factor

Dome

Product colour

White

Mounting type

Ceiling/wall

International Protection (IP) code

IP51

Housing material

Polyvinyl chloride (PVC)

Minimum illumination

0.1 lx

Tilt angle range

0 - 90°

Tilt speed

100 °/sec

Pan range

-179 - 179°

Pan speed

100 °/sec

Camera shutter speed

1/17000 - 2 s

Camera pan control

Yes

Camera tilt control

Yes

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Number of sensors

1

Number of lenses

1

Auto focus

Yes

Zoom capability

Yes

Optical zoom

5x

Digital zoom

12x

Focal length range

2.2 - 11.0 mm

Privacy masking

Yes

Digital Wide Dynamic Range (DWDR)

Yes

Bit rate

Configurable bit rate

Video compression formats

H.264, H.265

Maximum resolution

1280 x 720 pixels

Video formats supported

M-JPEG

Supported video modes

720p

Frame rate

60 fps

Video streaming

Yes

Total megapixels

1 MP

Video recording

Yes

Built-in microphone

Yes

Audio system

1-way

Audio formats supported

AAC-LC, ADPCM, LPCM, OPUS, PCM

Audio detection

Yes

Bluetooth

No

Networking standards

IEEE 802.3af

Quality of Service (QoS) support

Yes

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)

Card reader integrated

Yes

Built-in HDD

No

Internal memory

1024 MB

Flash memory

512 MB

Connectivity technology

Wired

Alert notification type

E-mail

Video motion detection

Yes

Security algorithms

EAP-TLS, HTTPS, SNMP

IP address filtering

Yes

HTTPS encryption

Yes

Active tampering alarm

Yes

Password protection

Yes

Power source type

PoE

Power consumption (max)

9.3 W

Power consumption (typical)

4.2 W

Certification

EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 IEC/EN 60529 IP51 NIST SP500-267

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 95%

Length

63 mm

Diameter

13 cm

Weight

380 g

Number of cameras

1

Mounting kit

Yes

Manual

Yes

Video compression formats

H.264, H.265

Harmonized System (HS) code

85258900
