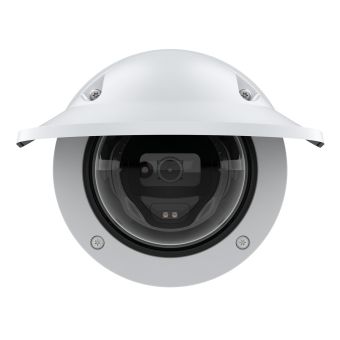

Axis 02372-001 security camera Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall

PTZ modes

Digital PTZ

Fog proof

Yes

Type

IP security camera

Connectivity technology

Wired

PTZ control

Yes

Placement supported

Indoor & outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

IK code

IK10

Fog proof

Yes

Form factor

Dome

Product colour

White

Mounting type

Ceiling/wall

International Protection (IP) code

IP66

Housing material

Plastic, Polycarbonate (PC)

Minimum illumination

0.16 lx

Tilt angle range

-10 - 80°

Pan range

0 - 190°

Angle of rotation

190°

Camera shutter speed

1/50000 - 1/5 s

Lens viewing angle, horizontal

102°

Lens viewing angle, vertical

73°

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Closest focusing distance

1 m

Minimum aperture number

2

Zoom capability

Yes

Fixed focal length

2.9 mm

Night vision

Yes

LED type

IR

Privacy masking

Yes

Video compression formats

H.264, H.265

Maximum resolution

2688 x 1512 pixels

Frame rate

30 fps

Video streaming

Yes

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1x

Ethernet LAN

Yes

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Internal memory

1024 MB

Flash memory

8192 MB

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Security algorithms

EAP-TLS, HTTPS

HTTPS encryption

Yes

Power source type

PoE

Power consumption (Power over Ethernet (PoE))

4.8 W

Operating temperature (T-T)

-40 - 50 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 100%

Storage relative humidity (H-H)

5 - 95%

Height

102 mm

Diameter

14.9 cm

Weight

791 g

Number of cameras

1

Video compression formats

H.264, H.265
