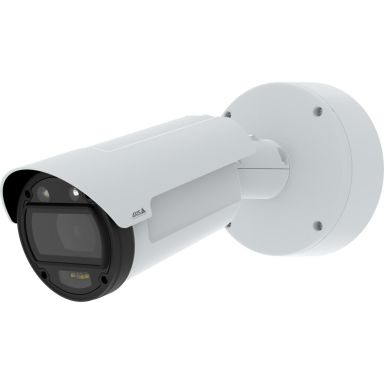

Axis Q1808-LE Bullet IP security camera Outdoor 3712 x 2784 pixels Wall
In Stock
|
$2506.51
$3007.81 (Inc. VAT)
Performance
Preset points
Yes
Infrared (IR) cut-off filter
Yes
PTZ modes
Digital PTZ
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Certification
UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
Design
IK code
IK10
Form factor
Bullet
Product colour
Black, White
Mounting type
Wall
Protection features
Impact resistant
International Protection (IP) code
IP66, IP67
Housing material
Aluminium, Glass
Camera
Minimum illumination
0.004 lx
Tilt angle range
0 - 90°
Pan range
-180 - 180°
Angle of rotation
360°
Camera shutter speed
1/45500 - 2 s
Camera pixel size
4.63 µm
Lens viewing angle, horizontal
90 - 21°
Lens viewing angle, vertical
49 - 12°
Image sensor
Sensor type
CMOS
Optical sensor size
101.6 / 3 mm (4 / 3")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
4
Recognize distance (wide)
85.4 m
Recognize distance (tele)
255.1 m
Observe distance (wide)
169.4 m
Observe distance (tele)
506.3 m
Identify distance (wide)
42.7 m
Identify distance (tele)
127.6 m
Detect distance (wide)
426.9 m
Detect distance (tele)
1275.8 m
Closest focusing distance
1.5 m
Focus
Motorized
Zoom capability
Yes
Optical zoom
4x
Focal length range
12 - 48 mm
Night vision
Night vision
Yes
Night vision distance
100 m
LED type
IR
Infra-red wavelength
850 nm
Video
Noise reduction
Yes
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Text caption overlay
Yes
Privacy masking
Yes
Image stabilizer
Yes
Gain control type
Auto
Bit rate control
Variable Bit Rate (VBR)
Noise reduction technology
2D noise reduction, 3D noise reduction
Maximum resolution
3712 x 2784 pixels
Video formats supported
AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions
160 x 120, 160 x 90, 1280 x 800, 3840 x 2160
Frame rate
60 fps
Video streaming
Yes
Audio
Sample rate
48 kHz
Signal-to-Noise Ratio (SNR)
55 dB
Audio formats supported
AAC-LC, ADPCM, G.711, G.726, LPCM, PCM
Network
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Networking standards
IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt
Quality of Service (QoS) support
Yes
Streaming method
Multicast
Ethernet LAN
Yes
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Storage
ROM capacity
2048 MB
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
8192 MB
Ports & interfaces
Terminal block port
Yes
Microphone in
Yes
DC-in jack
Yes
Connectivity technology
Wired
Security
Alert notification type
E-mail
Intelligent Video Surveillance (IVS) system features
Face detection, Human detection, Line crossing detection, Moving object, Vehicle detection
Security algorithms
SNMP
Password protection
Yes
Pixel counter
Yes
Digest authentication
Yes
Management features
Remotely operated
Yes
Power
Power source type
PoE
Power consumption (max)
51 W
Power consumption (typical)
14.9 W
DC-in jack
Yes
Certificates
Certification
UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
Operational conditions
Operating temperature (T-T)
-40 - 60 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Weight
3.2 kg
Features
License plate recognition
Yes
Packaging content
Number of cameras
1
Manual
Yes
Cables included
LAN (RJ-45)
Technical details
Sustainability certificates
REACH, RoHS
Doesn't contain
PVC/BFR
Compliance certificates
REACH, RoHS
Other features
Focus
Motorized
