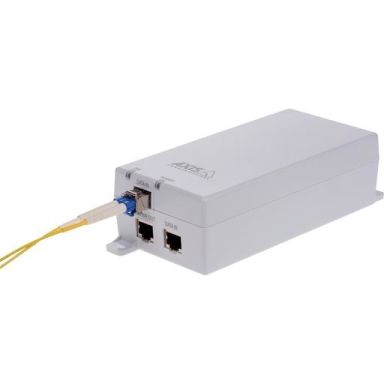

Axis T8154 Midspan

Brand compatibility

Axis

Compatibility

M1055-L, M1075-L, M1135-E Mk II, M1135 Mk II, M1137 Mk II, M1137-E Mk II, P1375-E, P1375, P1377, P1377-LE, P1378, Q1615 Mk III, Q1615-LE Mk III, Q1656-B, Q1656, Q1656-BE, Q1656-BLE, Q1656-LE, Q1659, M2035-LE, M2036-LE, P1465-LE, P1455-LE, P1465-LE-3, P1467-LE, Q1700-LE, P1468-LE, Q1715, Q1786-LE, M3057-PLVE Mk II, M3077-PLVE, M3086-V, M3085-V, M3088-V, M3115-LVE, M3215-LVE, M3116-LVE, M3216-LVE, M3905-R, M4215-V, M4215-LV, M4216-LV, M4216-V, M4218-V, M4218-LV, M4308-PLE, P3255-LVE, P3265-LV, P3265-LVE-3, P1378-LE, P3265-LVE, P3265-V, P3267-LVE, P3267-LV, P3268-LV, P3268-LVE, P3727-PLE, P3719-PLE, P3807-PVE, P3904-R Mk II, P3818-PVE, P3827-PVE, P3905-R Mk II, P3925-LRE, P3935-LR, P3925-R, P4705-PLVE, P4707-PLVE, Q3536-LVE, Q3538-LVE, Q3538-SLVE, Q3628-VE, Q3626-VE, Q3819-PVE, Q9216-SLV, P9106-V

Type

Midspan

Product colour

White

Certification

IEC/EN/UL 60950-1, EN 62368-1, KC, CCC, CB, S-Mark, GS Mark per EN 60950-1, EN 55032 Class A, EN 61000 3-2, EN 61000 3-3, EN 55035, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, KCC KN32 Class A, KN35, EN 61000–6-1, EN 61000–6–2, EN 50121–4, IEC 62236-4

LED indicators

Yes

Networking standards

IEEE 802.3bt

Ethernet LAN data rates

10,100,1000 Mbit/s

Output voltage

55 V

Input voltage

100-240 V

Rated power

60 W

Input frequency

50/60 Hz

Power source type

AC

Compatibility

M1055-L, M1075-L, M1135-E Mk II, M1135 Mk II, M1137 Mk II, M1137-E Mk II, P1375-E, P1375, P1377, P1377-LE, P1378, Q1615 Mk III, Q1615-LE Mk III, Q1656-B, Q1656, Q1656-BE, Q1656-BLE, Q1656-LE, Q1659, M2035-LE, M2036-LE, P1465-LE, P1455-LE, P1465-LE-3, P1467-LE, Q1700-LE, P1468-LE, Q1715, Q1786-LE, M3057-PLVE Mk II, M3077-PLVE, M3086-V, M3085-V, M3088-V, M3115-LVE, M3215-LVE, M3116-LVE, M3216-LVE, M3905-R, M4215-V, M4215-LV, M4216-LV, M4216-V, M4218-V, M4218-LV, M4308-PLE, P3255-LVE, P3265-LV, P3265-LVE-3, P1378-LE, P3265-LVE, P3265-V, P3267-LVE, P3267-LV, P3268-LV, P3268-LVE, P3727-PLE, P3719-PLE, P3807-PVE, P3904-R Mk II, P3818-PVE, P3827-PVE, P3905-R Mk II, P3925-LRE, P3935-LR, P3925-R, P4705-PLVE, P4707-PLVE, Q3536-LVE, Q3538-LVE, Q3538-SLVE, Q3628-VE, Q3626-VE, Q3819-PVE, Q9216-SLV, P9106-V

Type

Midspan

Doesn't contain

PVC

Width

80 mm

Weight

517 g

Height

50 mm

Depth

184 mm

Product colour

White

Quantity per pack

1 pc(s)

Quick installation guide

Yes

Operating relative humidity (H-H)

0 - 90%

Storage temperature (T-T)

-20 - 70 °C

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-50 - 50 °C

Certification

IEC/EN/UL 60950-1, EN 62368-1, KC, CCC, CB, S-Mark, GS Mark per EN 60950-1, EN 55032 Class A, EN 61000 3-2, EN 61000 3-3, EN 55035, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, KCC KN32 Class A, KN35, EN 61000–6-1, EN 61000–6–2, EN 50121–4, IEC 62236-4
