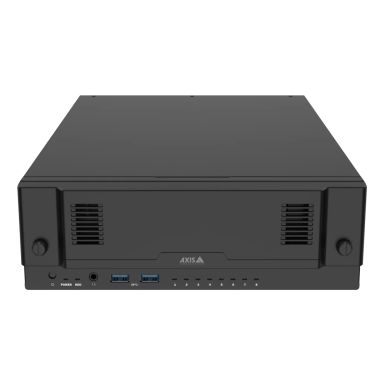

Axis S2208 Mk II 4 TB

Video input channels

8 channels

Maximum resolution

7680 x 4320 pixels

Built-in processor

Yes

Internal memory

16 MB

Internal memory type

DDR5

Networking standards

IEEE 802.3at

Number of HDDs supported

2

Total installed storage capacity

4 GB

Maximum storage capacity

8 TB

HDD interface

SATA

HDD size

3.5"

Number of HDDs installed

1

HDD capacity

4 GB

Number of HDDs supported

2

Total installed storage capacity

4 GB

Maximum storage capacity

8 TB

HDD interface

SATA

HDD size

3.5"

Number of HDDs installed

1

HDD capacity

4 GB

Ethernet LAN (RJ-45) ports

2

Power over Ethernet (PoE)

Yes

HDMI output

Yes

DC-in jack

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Power over Ethernet (PoE) ports quantity

8

Networking standards

IEEE 802.3at

HDMI ports quantity

2

Storage relative humidity (H-H)

10 - 90%

Certification

UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM

Reset button

Yes

Product colour

Black

Brand compatibility

Ajax

Built-in processor

Yes

Output current

3.5 A

Power consumption (typical)

75 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

270 W

Total Power over Ethernet (PoE) budget

135 W

Windows operating systems supported

Yes

Operating temperature (T-T)

Operating relative humidity (H-H)

10 - 90%

Storage temperature (T-T)

Storage relative humidity (H-H)

10 - 90%

Compliance certificates

Trade Agreements Act (TAA)

Safety warning

CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368. 1:2018, IS 13252

Width

330 mm

Depth

230 mm

Height

78 mm

Weight

5.8 kg

Quick installation guide

Yes

AC adapter included

Yes
