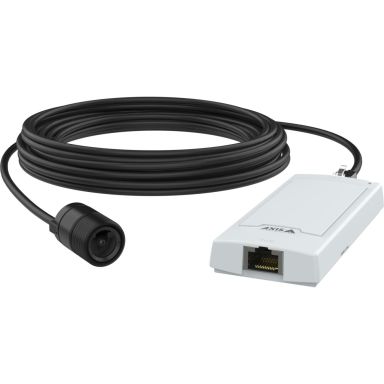

Axis P1245 Mk II Covert IP security camera Indoor 1920 x 1080 pixels Ceiling

Type

IP security camera

Connectivity technology

Wired

Placement supported

Indoor

Wide Dynamic Range (WDR)

Yes

Form factor

Covert

Product colour

Black, White

Mounting type

Ceiling

LED indicators

Yes

International Protection (IP) code

IPX3

Housing material

Plastic, Steel

Minimum illumination

0.2 lx

Camera shutter speed

1/6500 - 1/5 s

Lens viewing angle, horizontal

Lens viewing angle, vertical

Sensor type

CMOS

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Number of sensors

1

Number of lenses

1

Maximum aperture number

2

Closest focusing distance

0.2 m

Fixed focal length

2.8 mm

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Text caption overlay

Yes

Privacy masking

Yes

Flip & mirror

Yes

Bit rate control

Variable Bit Rate (VBR)

Maximum resolution

1920 x 1080 pixels

Video formats supported

AVC, H.264, HEVC, M-JPEG, MPEG4

Supported graphics resolutions

480 x 360, 640 x 360, 1024 x 640, 1024 x 768 (XGA), 1920 x 1080 (HD 1080)

Frame rate

30 fps

Video streaming

Yes

Signal-to-Noise Ratio (SNR)

55 dB

Bluetooth

No

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.3af, IEEE 802.3at

Streaming method

Multicast

Ethernet LAN

Yes

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Internal memory

1024 MB

Flash memory

512 MB

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Alert notification type

E-mail

Intelligent Video Surveillance (IVS) system features

Face detection, Human detection, Vehicle detection

Video motion detection

Yes

Security algorithms

802.1x RADIUS, EAP-TLS, HTTPS, PEAP, TLS

Pixel counter

Yes

Human and vehicle targets classification

Yes

Behavior analysis

Line crossing detection, Scene change detection

Power source type

PoE

Power consumption (max)

4.1 W

Power consumption (typical)

3.4 W

Operating temperature (T-T)

Storage temperature (T-T)

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 95%

Weight

75 g

Number of cameras

1

Manual

Yes

Doesn't contain

PVC

Compliance certificates

RoHS
