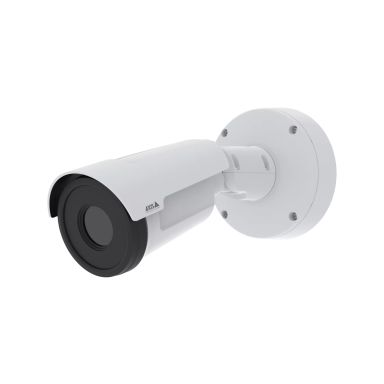

Axis Q1972-E Bullet IP security camera Outdoor 640 x 480 pixels Wall

Preset points

Yes

Type

IP security camera

Connectivity technology

Wired

Placement supported

Outdoor

Certification

CSA, UL/cUL, CE, KC, TAA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10d , ISO 21207 Method B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), NIST SP500-267

Thermal sensitivity (NETD)

20 mK

Weatherproof

Yes

IK code

IK10

Form factor

Bullet

Product colour

Black, White

Mounting type

Wall

LED indicators

Yes

International Protection (IP) code

IP66, IP67

Housing material

Aluminium, Polycarbonate (PC)

Camera pixel size

Lens viewing angle, horizontal

Sensor type

Microbolometer

Effective sensor resolution (thermal module)

640 x 480 pixels

Number of sensors

1

Number of lenses

1

Maximum aperture number

1

Closest focusing distance

8.5 m

Lens diameter

1.9 cm

Infrared spectral band

Image quality adjustment

Brightness, Contrast, Sharpness

Text caption overlay

Yes

Flip & mirror

Yes

Image stabilizer

Yes

Gain control type

Auto

Bit rate control

Variable Bit Rate (VBR)

Video compression formats

AVC, H.264, H.265, HEVC, M-JPEG, MPEG4

Maximum resolution

640 x 480 pixels

Frame rate

30 fps

Video streaming

Yes

Audio system full duplex

Yes

Audio formats supported

AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM

Audio detection

Yes

Sample rates

8 - 48 kHz

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Networking standards

IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Quality of Service (QoS) support

Yes

Streaming method

Multicast

Ethernet LAN

Yes

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSc , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Flash memory

8192 MB

RAM capacity

2048 MB

Terminal block port

Yes

RS-485 ports

1

RS-422 ports

1

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Connectivity technology

Wired

Privacy protection

Yes

Alert notification type

E-mail

Video motion detection

Yes

Security algorithms

256-bit AES-XTS, EAP-TLS, FIPS 140-2, MSCHAPv2, PEAP

Active tampering alarm

Yes

Pixel counter

Yes

Digest authentication

Yes

Power source type

DC, PoE

Power consumption (max)

12.95 W

Power consumption (Power over Ethernet (PoE))

12.95 W

Power consumption (typical)

5 W

DC-in jack

Yes

Certification

CSA, UL/cUL, CE, KC, TAA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10d , ISO 21207 Method B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), NIST SP500-267

Operating temperature (T-T)

Storage temperature (T-T)

Operating relative humidity (H-H)

10 - 100%

Storage relative humidity (H-H)

5 - 95%

Width

132 mm

Depth

264 mm

Height

132 mm

Weight

1.4 kg

Compliance certificates

REACH, RoHS

Number of cameras

1

Manual

Yes

Doesn't contain

CFR, PVC/BFR

Compliance certificates

REACH, RoHS

Video compression formats

AVC, H.264, H.265, HEVC, M-JPEG, MPEG4

Doesn't contain

CFR, PVC/BFR
