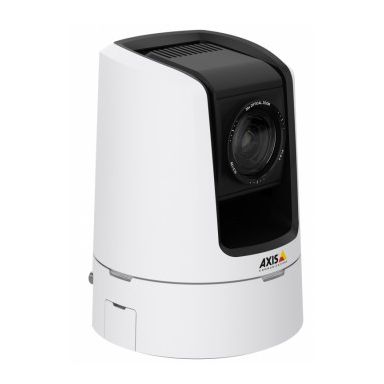

Axis V5914 50HZ Indoor Ceiling/Wall 1280 x 720 pixels
In Stock
|
Call For Price
(0808 189 1246)
Performance
Preset points
Yes
Infrared (IR) cut-off filter
Yes
Number of languages
11
Fog proof
Yes
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Indoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Design
Fog proof
Yes
Product colour
Black- White
Mounting type
Ceiling/wall
Housing material
Plastic
Camera
Minimum illumination
0.03 lx
Viewing angle- horizontal
63.7°
Viewing angle- vertical
34.5°
Tilt angle range
-20 - 90°
Tilt speed
90 °/sec
Pan range
-170 - 170°
Pan speed
100 °/sec
Camera shutter speed
1/10000 - 1 s
Camera pan control
Yes
Camera tilt control
Yes
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
4.7
Auto focus
Yes
Minimum aperture number
1.6
Zoom capability
Yes
Optical zoom
30x
Digital zoom
12x
Focal length range
4.3 - 129 mm
Video
Noise reduction
Yes
Text caption overlay
Yes
Image stabilizer
Yes
Bit rate control
Variable Bit Rate (VBR)
Back Light Compensation (BLC)
Yes
Video compression formats
AVC-H.264-M-JPEG-MPEG4
Maximum resolution
1280 x 720 pixels
Supported graphics resolutions
160 x 90-1280 x 720 (HD 720)
Supported video modes
720p
Frame rate
60 fps
Video streaming
Yes
Audio
Sample rate
48 kHz
Signal-to-Noise Ratio (SNR)
85 dB
Frequency range
20 - 20000 Hz
Audio system
2-way
Audio detection
Yes
Network
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1x
Quality of Service (QoS) support
Yes
Streaming method
Multicast
Ethernet LAN
Yes
Storage
Card reader integrated
Yes
Compatible memory cards
SD-SDHC-SDXC
Internal memory
1024 MB
Flash memory
512 MB
Ports & interfaces
Terminal block port
Yes
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Alert notification type
E-mail
IP address filtering
Yes
HTTPS encryption
Yes
Password protection
Yes
Power
Power source type
DC
Power consumption (max)
21 W
Power consumption (typical)
12 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
136 mm
Depth
136 mm
Height
180 mm
Weight
1.49 kg
Axis V5914 50HZ Indoor Ceiling/Wall 1280 x 720 pixels
| Length | 13.60 cm |
| Width | 13.60 cm |
| Height | 18.00 cm |
| Weight | 1.490000 kgs |
