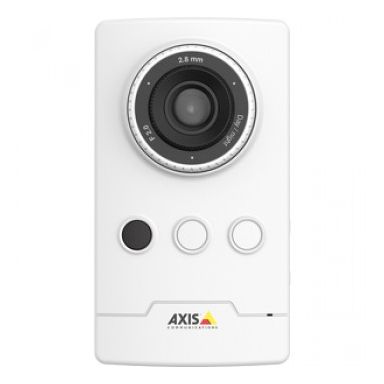

Axis M1045-LW IP security camera Indoor Box Desk/Wall 1920 x 1080 pixels
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Performance | |
|---|---|
| Antenna type | Internal |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 11 |
| Type | IP security camera |
| Connectivity technology | Wired & Wireless |
| PTZ control (Pan/Tilt/Zoom) | Yes |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| Form factor | Box |
| Product colour | White |
| Mounting type | Desk/Wall |
| Housing material | Aluminium-Plastic-Polycarbonate |
| Camera | |
| Minimum illumination | 0.05 lx |
| Viewing angle- horizontal | 110° |
| Viewing angle- vertical | 61° |
| Camera shutter speed | 1/28000 - 1/5 s |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Lens system | |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Video | |
| Full HD | Yes |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Video compression formats | H.264 |
| Maximum resolution | 1920 x 1080 pixels |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Frequency band | 2.4 - 5 GHz |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a-Wi-Fi 5 (802.11ac)-802.11b-802.11g-Wi-Fi 4 (802.11n) |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash)-MicroSDHC-MicroSDXC |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Ports & interfaces | |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
| Security | |
| Security algorithms | WPA-WPA2-WPA2-PSK-WPS |
| Password protection type | User |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Management features | |
| WPS push button | Yes |
| Power | |
| Power consumption (max) | 4.4 W |
| Power over Ethernet (PoE) | No |
| Power consumption (typical) | 2.7 W |
| DC output voltage | 5 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 60 mm |
| Depth | 37 mm |
| Height | 106 mm |
| Weight | 126 g |
| Packaging content | |
| Number of cameras | 1 |
| AC adapter included | Yes |
| User guide | Yes |
| Technical details | |
| Lens mount interface | M12 |
| Iris | Yes |
| Removable IR-cut filter | Yes |
| Other features | |
| Video compression formats | H.264 |
