Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Indoor & outdoor |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Design | |
Form factor | Dome |
Product colour | White |
Mounting type | Ceiling/wall |
International Protection (IP) code | IP42 |
Camera | |
Minimum illumination | 0.04 lx |
Viewing angle- horizontal | 80° |
Viewing angle- vertical | 45° |
Tilt angle range | 0 - 60° |
Pan range | -180 - 180° |
Angle of rotation | 95° |
Camera shutter speed | 1/66500 - 2 s |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system | |
Maximum aperture number | 2 |
Fixed focal length | 2.8 mm |
Night vision | |
Night vision | Yes |
Night vision distance | 15 m |
LED type | IR |
Infra-red wavelength | 850 nm |
Video | |
Text caption overlay | Yes |
Privacy masking | Yes |
Flip & mirror | Yes |
Video compression formats | H.264-M-JPEG |
Maximum resolution | 1280 x 720 pixels |
Supported graphics resolutions | 1280 x 720 (HD 720) |
Supported video modes | 720p |
Frame rate | 30 fps |
Network | |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.3af-IEEE 802.3at |
Ethernet LAN | Yes |
Cabling technology | 10/100Base-T(X) |
Wi-Fi | No |
Storage | |
Card reader integrated | Yes |
Built-in HDD | No |
Internal memory | 512 MB |
Flash memory | 256 MB |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Connectivity technology | Wired |
Security | |
Password protection type | User |
IP address filtering | Yes |
HTTPS encryption | Yes |
Power | |
Power consumption (max) | 6.2 W |
Power over Ethernet (PoE) | Yes |
Power consumption (typical) | 4.2 W |
Weight & dimensions | |
Height | 85 mm |
Diameter | 10 cm |
Weight | 360 g |

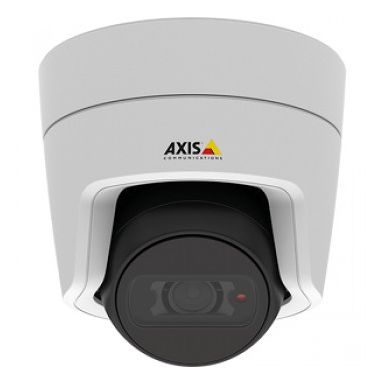

Axis M3104-L IP security camera Indoor & outdoor Dome Ceiling/Wall 1280 x 720 pixels
