Performance | |
---|---|
Infrared (IR) cut-off filter | Yes |
Type | IP security camera |
Connectivity technology | Wired |
PTZ control | Yes |
Placement supported | Indoor & outdoor |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Design | |
Form factor | Dome |
Product colour | White |
Mounting type | Ceiling/wall |
International Protection (IP) code | IP66 |
Camera | |
Minimum illumination | 0.04 lx |
Tilt angle range | 0 - 60° |
Pan range | -180 - 180° |
Angle of rotation | 95° |
Camera shutter speed | 1/66500 - 2 s |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 1/2.8" |
Lens system | |
Maximum aperture number | 2 |
Fixed focal length | 0.11" (2.8 mm) |
Night vision | |
Night vision | Yes |
Night vision distance | 15 m |
LED type | IR |
Infra-red wavelength | 850 nm |
Video | |
Full HD | Yes |
Text caption overlay | Yes |
Privacy masking | Yes |
Flip & mirror | Yes |
Video compression formats | H.264 |
Maximum resolution | 1920 x 1080 pixels |
Supported video modes | 1080p |
Frame rate | 30 fps |
Network | |
Ethernet interface type | Fast Ethernet |
Ethernet LAN | Yes |
Cabling technology | 10/100Base-T(X) |
Wi-Fi | No |
Storage | |
Card reader integrated | Yes |
Built-in HDD | No |
Internal memory | 512 MB |
Flash memory | 256 MB |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Interface | RJ-45 |
Connectivity technology | Wired |
Memory | |
Internal memory | 512 MB |
Flash memory | 256 MB |
Hard drive | |
Built-in HDD | No |
Technical details | |
Video compression formats | H.264 |
Quick start guide | Yes |
Type | IP security camera |
Form factor | Dome |
PTZ control | Yes |
Placement supported | Indoor & outdoor |
Product colour | White |
Mounting type | Ceiling/wall |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Progressive scan | Yes |
Interface | RJ-45 |
Lens mount interface | M12 |
Iris | Yes |
Removable IR-cut filter | Yes |
Security | |
Alert notification type | |
Password protection type | User |
IP address filtering | Yes |
HTTPS encryption | Yes |
Power | |
Power consumption (max) | 6.2 W |
Power over Ethernet (PoE) | Yes |
Power consumption (typical) | 4.2 W |
Certificates | |
International Protection (IP) code | IP66 |
Operational conditions | |
Operating temperature (T-T) | -30 - 50 °C |
Storage temperature (T-T) | -40 - 65 °C |
Operating relative humidity (H-H) | 10 - 100% |
Weight & dimensions | |
Height | 3.7" (94 mm) |
Diameter | 3.98" (10.1 cm) |
Weight | 13.4 oz (380 g) |

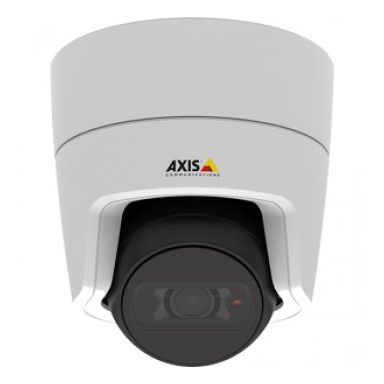

Axis M3105-LVE IP security camera Indoor & outdoor Dome Ceiling/Wall 1920 x 1080 pixels
