Performance | |
---|---|
Preset points | Yes |
Infrared (IR) cut-off filter | Yes |
Number of languages | 11 |
Type | IP security camera |
Connectivity technology | Wired |
PTZ control (Pan/Tilt/Zoom) | Yes |
Placement supported | Indoor & outdoor |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Design | |
IK code | IK10 |
Form factor | Dome |
Product colour | Black-White |
Mounting type | Wall |
International Protection (IP) code | IP66 |
Housing material | Aluminium-Polycarbonate |
Camera | |
Adjustment shutter speed | Manual |
Minimum illumination | 0.01 lx |
Viewing angle- horizontal | 66.7° |
Viewing angle- vertical | 39.5° |
Tilt angle range | -90 - 20° |
Tilt speed | 500 °/sec |
Pan range | 0 - 360° |
Pan speed | 700 °/sec |
Camera shutter speed | 1/60000 - 2 s |
Camera pan control | Yes |
Camera tilt control | Yes |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Number of sensors | 1 |
Lens system | |
Number of lenses | 1 |
Maximum aperture number | 4.7 |
Auto focus | Yes |
Minimum aperture number | 1.6 |
Zoom capability | Yes |
Optical zoom | 30x |
Digital zoom | 12x |
Focal length range (f-f) | 4.3 - 129 mm |
Video | |
Text caption overlay | Yes |
Privacy masking | Yes |
Image stabilizer | Yes |
Bit rate control | Variable Bit Rate (VBR) |
Back Light Compensation (BLC) | Yes |
Video compression formats | AVC-H.264-M-JPEG-MPEG4 |
Maximum resolution | 1920 x 1080 pixels |
Supported graphics resolutions | 320 x 180-1920 x 1080 (HD 1080) |
Supported video modes | 1080p |
Frame rate | 60 fps |
Video streaming | Yes |
Network | |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.3at |
Quality of Service (QoS) support | Yes |
Streaming method | Multicast |
Ethernet LAN | Yes |
Storage | |
Card reader integrated | Yes |
Compatible memory cards | SD-SDHC-SDXC |
Internal memory | 512 MB |
Flash memory | 256 MB |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Connectivity technology | Wired |
Security | |
Alert notification type | |
Video motion detection | Yes |
IP address filtering | Yes |
HTTPS encryption | Yes |
Password protection | Yes |
Power | |
Power source type | AC-PoE |
Power consumption (max) | 51 W |
AC input voltage | 100-240 V |
Power consumption (typical) | 11 W |
Operational conditions | |
Operating temperature (T-T) | -20 - 50 °C |
Storage temperature (T-T) | -55 - 50 °C |
Operating relative humidity (H-H) | =-40 - 70% |
Weight & dimensions | |
Width | 165 mm |
Depth | 165 mm |
Height | 256 mm |
Weight | 2.9 kg |
Packaging content | |
Number of cameras | 1 |
Other features | |
Video compression formats | AVC-H.264-M-JPEG-MPEG4 |

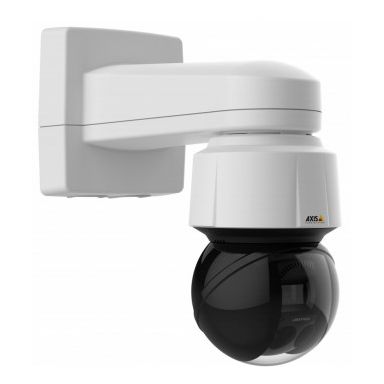

Axis Q6155-E 50Hz IP security camera Indoor & outdoor Dome Wall 1920 x 1080 pixels
