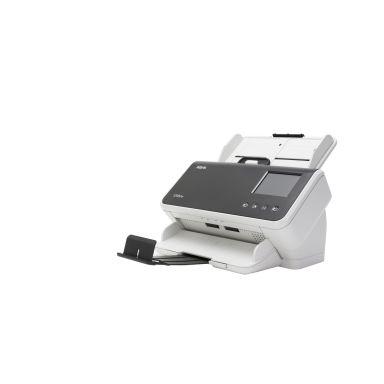

Alaris S2080W ADF scanner 600 x 600 DPI A4 Black, White

Output greyscale depth

8 bit

Selectable background colour

No

Scan speed (colour- low res- A4)

80 sec/page

Scan speed (colour- high res- A4)

80 sec/page

Scan speed (b/w- low res- A4)

80 sec/page

Scan speed (b/w- high res- A4)

80 sec/page

Black/white scanning colour modes

Grayscale

Maximum scan size

216 x 3000 mm

Optical scanning resolution

600 x 600 DPI

Colour scanning

Yes

Duplex scanning

Yes

Input colour depth

30 bit

Output colour depth

24 bit

Film scanning

No

Greyscale levels

256

ADF scan speed (b/w- A4)

80 ppm

ADF scan speed (colour- A4)

80 ppm

Duplex ADF scan speed (b/w- A4)

160 ipm

Duplex ADF scan speed (colour- A4)

160 ipm

Sensor type

Dual CIS

Light source

RGB LED

Scan file formats

BMP- CSV- DOC- DOCS- PDF- PNG- TIFF- TXT- XLS- XLSX

Daily duty cycle (max)

8000 pages

Scan to

Cloud- E-mail- E-mail Server- File- Image- OCR- PC- TWAIN- WIA

Built-in display

Yes

Touchscreen

Yes

Scanner type

ADF scanner

Display diagonal

8.89 cm (3.5")

Display

LCD

Product colour

Black- White

Text-to-speech technology

No

Built-in translator

No

Barcode reader

Yes

Button functions

Cancel- Off- On

Sensor type

Dual CIS

Light source

RGB LED

Scan file formats

BMP- CSV- DOC- DOCS- PDF- PNG- TIFF- TXT- XLS- XLSX

Daily duty cycle (max)

8000 pages

Scan to

Cloud- E-mail- E-mail Server- File- Image- OCR- PC- TWAIN- WIA

Scan drivers

ISIS- TWAIN- WIA

Processor frequency

1500 MHz

Built-in processor

Yes

Standard input capacity

80 sheets

Auto document feeder (ADF) input capacity

80 sheets

Maximum scan width

21.6 cm

Maximum scan length

3 m

Maximum ISO A-series paper size

A4

Scanning media types supported

Business Card- Envelopes- Plain paper- Plastic Card- Recycled paper- Thick paper- Thin paper

Maximum scan area (ADF)

215 x 155.6 mm

Minimum scan area (ADF)

52 x 52 mm

Auto Document Feeder (ADF) media weight

27 - 413 g/m²

Multi feed detection

Yes

Legal

Yes

ISO A-series sizes (A0...A9)

A4

Standard interfaces

Ethernet- USB 2.0- USB 3.2 Gen 1 (3.1 Gen 1)- Wireless LAN

USB port

Yes

USB version

3.2 Gen 2 (3.1 Gen 2)

Windows operating systems supported

Windows 10- Windows 7- Windows 8- Windows 8.1

Bundled software

WINDOWS Bundled software: TWAIN- ISIS- WIA Drivers; Capture Pro Limited Edition- Smart Touch- LINUX drivers available from www.kodak.com/go/scanonlinux (September Availability) KOFAX certified. (Future Availability)

Scan drivers

ISIS- TWAIN- WIA

Drivers included

Yes

Power consumption (typical)

36 W

Power consumption (standby)

3 W

Power consumption (off)

5 W

Input voltage

100-240 V

Power supply type

AC

Power supply

36 W

Power consumption (PowerSave)

5 W

AC input frequency

50 - 60 Hz

Maximum scan width

21.6 cm

Black/white scanning colour modes

Grayscale

Button functions

Cancel- Off- On

Scanner type

ADF scanner

Product colour

Black- White

Downloadable software

Capture Pro Limited Edition- Smart Touch

Scan technology

Dual CIS

PC connection

USB 3.2 Gen 1 (3.1 Gen 1)

Linear (1D) barcodes supported

Codabar- Code 128- Code 3 of 9- EAN-13- EAN-8- PDF417- U.P.C.

Relative humidity

15 - 80%

Maximum paper size

216 x 3000 mm

Power

36 W

Sustainability certificates

ENERGY STAR

Harmonized System (HS) code

84716070

Processor frequency

1500 MHz

Built-in processor

Yes

Touchscreen

Yes

Display diagonal

8.89 cm (3.5")

Display

LCD

Legal

Yes

ISO A-series sizes (A0...A9)

A4

Ethernet LAN

Yes

Wi-Fi

Yes

Windows operating systems supported

Windows 10- Windows 7- Windows 8- Windows 8.1

Minimum RAM

3430 MB

Minimum processor

INTEL CORE i3 - 4150 processor

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

15 - 80%

Operating temperature (T-T)

50 - 95 °F

Certification

EPEAT Registered ENERGY STAR Qualified AS/NZS CISPR 22:2009 +A1:2010; (Class B RCM mark)- CAN / CSA – C22.2 No 60950-1-07 +A1:2011 (TUV C mark)- Canada CSA-CISPR 22-10 / ICES-003 Issue 5 (Class B)- China GB4943.1:2011; GB9254:2008 Class B (CCC S&E mark)- EN55022:2010 ITE Emissions (Class B)- EN55024:2010 ITE Immunity (CE mark)- EN60950-1:2006 +A1-+A11-+A12 (TUV GS mark)- IEC60950-1:2005 +A1- Taiwan CNS 13438:2006 (Class B); CNS 14336-1 (BSMI mark)- UL 60950-1:2007 R12.11 (TUV US mark)- CFR 47 Part 15 (FCC Class B)- Argentina S markEPEAT Registered ENERGY STAR Qualified AS/NZS CISPR 22:2009 +A1:2010; (Class B RCM mark)- CAN / CSA – C22.2 No 60950-1-07 +A1:2011 (TUV C mark)- Canada CSA-CISPR 22-10 / ICES-003 Issue 5 (Class B)- China GB4943.1:2011; GB9254:2008 Class B (CCC S&E mark)- EN55022:2010 ITE Emissions (Class B)- EN55024:2010 ITE Immunity (CE mark)- EN60950-1:2006 +A1-+A11-+A12 (TUV GS mark)- IEC60950-1:2005 +A1- Taiwan CNS 13438:2006 (Class B); CNS 14336-1 (BSMI mark)- UL 60950-1:2007 R12.11 (TUV US mark)- CFR 47 Part 15 (FCC Class B)- Argentina S mark

Width

312 mm

Depth

269 mm

Height

182.5 mm

Weight

7 kg

Cables included

AC- USB

Stacker

Yes

ADF paper chute

Yes

Bundled software

WINDOWS Bundled software: TWAIN- ISIS- WIA Drivers; Capture Pro Limited Edition- Smart Touch- LINUX drivers available from www.kodak.com/go/scanonlinux (September Availability) KOFAX certified. (Future Availability)

Drivers included

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Scanner type

ADF scanner

Downloadable software

Capture Pro Limited Edition- Smart Touch

Harmonized System (HS) code

84716070
