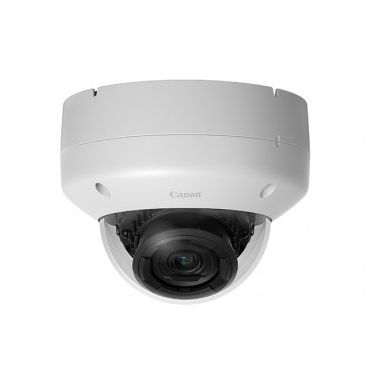

Canon VB-H652LVE Network Camera
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Performance
Preset points
Yes
Infrared (IR) cut-off filter
Yes
Processor model
Canon DIGIC DV III
Light exposure modes
Aperture priority AEAutoManualShutter priority AE
Type
IP security camera
Connectivity technology
Wired
PTZ control (Pan/Tilt/Zoom)
Yes
Placement supported
Indoor & outdoor
Day/night mode
Yes
Design
Form factor
Dome
Product colour
White
Mounting type
Ceiling
Protection features
Vandal proof
International Protection (IP) code
IP66
Camera
Viewing angle horizontal
122.1°
Viewing angle vertical
65.9°
Tilt angle range
-15 - 75°
Pan range
-180 - 180°
Angle of rotation
350°
Camera shutter speed
1 - 1/16000 s
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 3 mm (1 / 3")
Lens system
Maximum aperture number
1.8
Auto focus
Yes
Zoom capability
Yes
Optical zoom
2.4x
Digital zoom
4x
Focal length range (f-f)
2.55 - 6.12 mm
Night vision
Night vision
Yes
Night vision distance
20 m
LED type
IR
Video
Full HD
Yes
Automatic gain control
Yes
Privacy masking
Yes
Image stabilizer
Yes
Video compression formats
H.264
Maximum resolution
1920 x 1080 pixels
Frame rate
30 fps
Total megapixels
2.1 MP
Audio
Voice codecs
G.711
Audio system full duplex
Yes
Networking
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3at
Number of users
10 user(s)
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Wi-Fi
No
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash)MicroSDHCMicroSDXC
Ports & interfaces
Microphone in
Yes
Headphone outputs
1
DC-in jack
Yes
Interface
RJ-45
Connectivity technology
Wired
Security
Alert notification type
E-mailSnapshot alert message
Video motion detection
Yes
Password protection type
User
Power
Power source type
PoE
Power consumption (max)
24.1 W
Power consumption (Power over Ethernet (PoE))
12.4 W
Power over Ethernet (PoE)
Yes
AC input voltage
100-240 V
DC-in jack
Yes
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Storage temperature (T-T)
30 - 60 °C
Operating relative humidity (H-H)
5 - 85%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
180 mm
Height
145 mm
Weight
1.85 kg
Packaging content
Number of cameras
1
Technical details
Removable IR-cut filter
Yes
Other features
Video compression formats
H.264
Noise detection
Yes
Canon VB-H652LVE Network Camera
