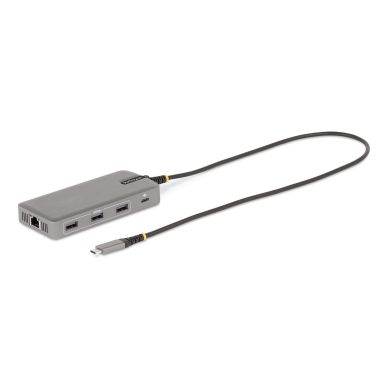

StarTech.com USB-C Triple Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W PD Pass-Through, GbE, Travel Dock, Windows & ChromeOS

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 2.0 ports quantity

0

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

2

HDMI version

2.0b

DisplayPorts quantity

2

Microphone in

No

Headphone outputs

0

Connectivity technology

Wired

USB Power Delivery (USB PD)

Yes

USB Power Delivery revision

3.0

USB Power Delivery up to

100 W

DisplayPort version

1.4

Full duplex

Yes

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Wake-on-LAN ready

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet LAN (RJ-45) ports

1

UASP support

Yes

Maximum digital resolution

3840 x 2160 pixels

Full duplex

Yes

Number of displays supported

3

Product colour

Grey

Card reader integrated

No

LED indicators

Yes

Data transfer rate

10 Gbit/s

HD type

4K Ultra HD

Housing material

Plastic

Maximum refresh rate

60 Hz

Product colour

Grey

Data transfer rate

10 Gbit/s

Sustainability compliance

Yes

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Products per master (outer) case

24 pc(s)

Master (outer) case width

290 mm

Master (outer) case length

530 mm

Master (outer) case height

235 mm

Card reader integrated

No

Power source type

USB

Power consumption (typical)

15 W

USB cable length

0.6 m

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Other operating systems supported

ChromeOS

LED indicators

Yes

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

5 - 90%

Sustainability compliance

Yes

Weight

113 g

Width

56 mm

Depth

122 mm

Height

18 mm

Package weight

210 g

Package width

124 mm

Package depth

241 mm

Package height

32 mm

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Product colour

Grey

LED indicators

Yes

Package weight

210 g

Package width

124 mm

Package depth

241 mm

Package height

32 mm

Quick start guide

Yes

Products per master (outer) case

24 pc(s)

Master (outer) case width

290 mm

Master (outer) case length

530 mm

Master (outer) case height

235 mm

Chipset

Parade - PS8469, Synaptics - VMM5322, VIA - VL822, VIA - VL103, Realtek - RTL8153
