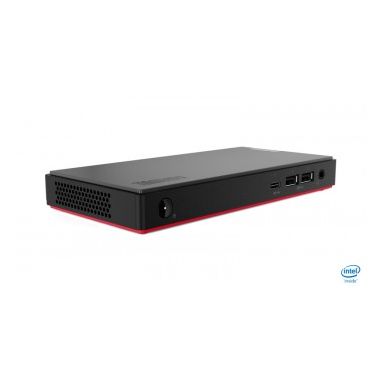

Lenovo ThinkCentre M90n-1 Nano 8th gen Intel Core i3 i3-8145U 8 GB DDR4-SDRAM 256 GB SSD Black Mini PC Windows 10 Pro
In Stock
|
Call For Price
(0808 189 1246)
Processor
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Whiskey Lake
Bus type
OPI
Maximum internal memory supported by processor
32 GB
Memory types supported by processor
DDR4-SDRAM-LPDDR3-SDRAM
Memory clock speeds supported by processor
2133-2400 MHz
Tjunction
100 °C
Thermal Design Power (TDP)
15 W
PCI Express configurations
1x2+2x1-1x4-2x2-4x1
Maximum number of PCI Express lanes
16
Configurable TDP-down
10 W
Memory bandwidth supported by processor (max)
37.5 GB/s
Processor cache type
Smart Cache
Configurable TDP-down frequency
0.8 GHz
Processor cache
4 MB
Processor frequency
2.1 GHz
Processor model
i3-8145U
Number of processors installed
1
Processor manufacturer
Intel
Processor boost frequency
3.9 GHz
System bus rate
4 GT/s
Processor socket
BGA 1528
Processor threads
4
Processor cores
2
PCI Express slots version
3.0
Processor family
8th gen Intel® Core⢠i3
Configurable TDP-up frequency
2.3 GHz
Configurable TDP-up
25 W
Memory
Non-ECC
Yes
Internal memory
8 GB
Maximum internal memory
8 GB
Internal memory type
DDR4-SDRAM
Memory clock speed
2666 MHz
Storage
Storage media
SSD
Number of storage drives installed
1
Optical drive type
No
SSD capacity
256 GB
Number of SSDs installed
1
Card reader integrated
No
Total storage capacity
256 GB
Total SSDs capacity
256 GB
Graphics
Discrete graphics adapter
No
On-board graphics adapter dynamic frequency (max)
1000 MHz
On-board graphics adapter base frequency
300 MHz
Maximum on-board graphics adapter memory
32 GB
Number of displays supported (on-board graphics)
3
On-board graphics adapter OpenGL version
4.5
On-board graphics adapter DirectX version
12.0
On-board graphics adapter ID
0x3EA0
On-board graphics adapter family
Intel® UHD Graphics
On-board graphics adapter
Yes
Discrete graphics adapter model
Not available
On-board graphics adapter model
Intel® UHD Graphics
Optical drive
Optical drive type
No
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Bluetooth
Yes
Bluetooth version
5.0
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)
Ethernet LAN data rates
10-100-1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
WLAN controller model
Intel Dual Band Wireless-AC 9560
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Antenna type
2x2
Ports & interfaces
Combo headphone/mic port
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Microphone in
No
Headphone outputs
1
Ethernet LAN (RJ-45) ports
1
DVI port
No
DisplayPorts quantity
1
DC-in jack
Yes
Expansion slots
PCI Express slots version
3.0
Technical details
Intel 64
Yes
Product type
Mini PC
Trusted Platform Module (TPM)
Yes
Intel® Turbo Boost Technology
2.0
Intel® Quick Sync Video Technology
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Product colour
Black
Chassis type
mini PC
Intel® Smart Response Technology
Yes
Placement supported
Horizontal
Cable lock slot
No
Motherboard chipset
Intel SoC
Sustainability certificates
RoHS- TCO- EPEAT Silver- ENERGY STAR
Design
Housing material
Metal
Volume
0.35 L
Product colour
Black
Chassis type
mini PC
Placement supported
Horizontal
Cable lock slot
No
Performance
Embedded options available
No
Audio chip
Realtek ALC233VB
Password protection
Yes
Password protection type
HDD- Power on- Supervisor
Product type
Mini PC
Trusted Platform Module (TPM)
Yes
Motherboard chipset
Intel SoC
Software
Operating system architecture
64-bit
Operating system installed
Windows 10 Pro
Processor special features
Embedded options available
No
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® OS Guard
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel TSX-NI
No
Intel Trusted Execution Technology
No
Intel® Secure Key
Yes
Intel Clear Video Technology
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Idle States
Yes
Execute Disable Bit
Yes
Intel Flex Memory Access
Yes
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Enhanced Halt State
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Supported instruction sets
AVX 2.0-SSE4.1-SSE4.2
Processor package size
46x24 mm
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
CPU configuration (max)
1
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
0.00
Intel Smart Response Technology version
1.00
Intel Secure Key Technology version
1.00
Intel Identity Protection Technology version
1.00
Processor ARK ID
149090
Intel 64
Yes
Intel® Turbo Boost Technology
2.0
Intel® Quick Sync Video Technology
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Smart Response Technology
Yes
Power
Power supply
65 W
Certificates
Certification
MIL-STD-810H
Sustainability
Sustainability certificates
RoHS- TCO- EPEAT Silver- ENERGY STAR
Weight & dimensions
Volume
0.35 L
Width
179 mm
Depth
88 mm
Height
22 mm
Weight
505 g
Packaging content
AC adapter included
Yes
Manual
Yes
Mouse included
Yes
Keyboard included
Yes
Power cord included
Yes
Other features
Trusted Platform Module (TPM)
Yes
On-board graphics adapter
Yes
Processor manufacturer
Intel
Lenovo ThinkCentre M90n-1 Nano 8th gen Intel Core i3 i3-8145U 8 GB DDR4-SDRAM 256 GB SSD Black Mini PC Windows 10 Pro
