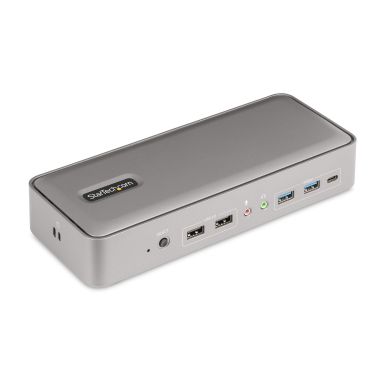

StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock
In Stock
|
$314.25
$377.10 (Inc. VAT)
Ports & interfaces
Number of microphone inputs
1
DisplayPorts quantity
2
DisplayPort version
1.4
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
Headphone outputs
1
DC-in jack
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Cable lock slot
Yes
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN (RJ-45) ports
1
Performance
Chipset
DisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek - RTL8211F
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Cable lock slot
Yes
Technical details
Product colour
Silver
LED indicators
LAN, Power
Sustainability compliance
Yes
Sustainability certificates
RoHS
Compliance certificates
RoHS
Design
Cable lock slot
Yes
Product colour
Silver
LED indicators
LAN, Power
Housing material
Plastic
Display
Built-in display
No
Power
Input current
2.4 A
Output current
9 A
Compatible power plug types
EU, UK
Output voltage
20 V
Power consumption (typical)
180 W
External power adapter
Yes
USB Power Delivery up to
90 W
USB Power Delivery
Yes
Input voltage
100 - 240 V
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported
Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04
Mac operating systems supported
Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported
ChromeOS
Video
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
-10 - 45 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 90%
Weight & dimensions
Width
90 mm
Depth
224 mm
Height
40 mm
Weight
402 g
Package width
160 mm
Package depth
285 mm
Package height
90 mm
Package weight
1.8 kg
Packaging data
Package width
160 mm
Package depth
285 mm
Package height
90 mm
Package weight
1.8 kg
Packaging content
Cables included
AC, USB Type-C
Quick installation guide
Yes
AC adapter included
Yes
Logistics data
Master (outer) case width
395 mm
Master (outer) case length
380 mm
Master (outer) case height
340 mm
Products per master (outer) case
6 pc(s)
StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock
