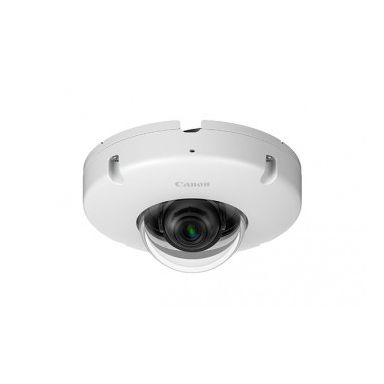

Canon VB-S800VE Network Camera
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Performance
Preset points
Yes
PTZ modes
Digital PTZ
Light exposure modes
AutoManual
Type
IP security camera
Connectivity technology
Wired
PTZ control (Pan/Tilt/Zoom)
Yes
Placement supported
Indoor
Day/night mode
Yes
Design
IK code
IK10
Form factor
Dome
Product colour
White
Mounting type
Ceiling
Camera
Minimum illumination
0.3 lx
Viewing angle horizontal
93.8°
Viewing angle vertical
58.7°
Tilt angle range
-90 - 90°
Pan range
-175 - 175°
Angle of rotation
180°
Camera shutter speed
1/16000 s
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 3 mm (1 / 3")
Effective sensor resolution
2100000 pixels
Lens system
Maximum aperture number
1.6
Fixed focal length
2.7 mm
Night vision
Night vision
Yes
Video
Noise reduction
Yes
Privacy masking
Yes
Bit rate control
Variable Bit Rate (VBR)
Video compression formats
H.264
Maximum resolution
1920 x 1080 pixels
Frame rate
30 fps
Audio
Audio input channels
2
Signal-to-Noise Ratio (SNR)
62 dB
Frequency range
50 - 16000 Hz
Built-in microphone
Yes
Audio system full duplex
Yes
Audio formats supported
G.711
Networking
Bluetooth
No
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)MicroSDHCMicroSDXC
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Intelligent Video Surveillance (IVS) system features
Abandoned object
Security algorithms
EAP-MD5EAP-PEAPEAP-TLSEAP-TTLSSSL/TLS
Password protection type
User
Password protection
Yes
Power
Power source type
PoE
Power consumption (Power over Ethernet (PoE))
3.9 W
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
-25 - 50 °C
Operating relative humidity (H-H)
5 - 85%
System requirements
Windows operating systems supported
Yes
Weight & dimensions
Height
65 mm
Diameter
13.2 cm
Weight
600 g
Packaging content
Number of cameras
1
Quick installation guide
Yes
Resource CD
Yes
Mounting kit
Yes
Technical details
Microphone type
Omnidirectional
Other features
Video compression formats
H.264
Number of simultaneous users
30 user(s)
Noise detection
Yes
