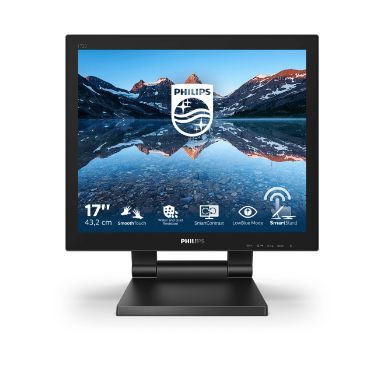

Philips B Line 172B9T/00 LED display 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Black
In Stock
|
Call For Price
(0808 189 1246)
Display
HDCP
Yes
Display brightness (typical)
250 cd/m²
Screen shape
Flat
Dynamic contrast ratio marketing name
SmartContrast
Display number of colours
16.78 million colours
Native aspect ratio
5:4
Pixel density
96 ppi
DDC/CI
Yes
Colour gamut
87%
Maximum refresh rate
60 Hz
sRGB coverage (typical)
103%
Display surface
Gloss
HD type
SXGA
Display technology
LCD
Contrast ratio (dynamic)
50000000:1
Viewing angle- horizontal
170°
Viewing angle- vertical
160°
Pixel pitch
0.264 x 0.264 mm
Horizontal scan range
30 - 85 kHz
Vertical scan range
48 - 75 Hz
Aspect ratio
5:4
Viewable size- horizontal
33.8 cm
Viewable size- vertical
27 cm
Digital horizontal frequency
30 - 85 kHz
Digital vertical frequency
48 - 75 Hz
3D
No
Supported graphics resolutions
1280 x 1024 (SXGA)
Backlight type
W-LED
Display resolution
1280 x 1024 pixels
Response time
1 ms
Display diagonal
43.2 cm (17")
Contrast ratio (typical)
1000:1
Surface hardness
7H
NTSC coverage (typical)
87%
Touchscreen type
Capacitive
Touchscreen
Yes
Number of simultaneous touchpoints
10
Panel type
TN
RGB colour space
sRGB
Display diagonal (metric)
43.2 cm
Display sRGB
Yes
Touchscreen technology
Projected capacitive system
Audio
Built-in speaker(s)
Yes
RMS rated power
2 W
Performance
Built-in speaker(s)
Yes
RMS rated power
2 W
Mean time between failures (MTBF)
70000 h
Built-in camera
No
AMD FreeSync
No
NVIDIA G-SYNC
No
Windows operating systems supported
Windows 10- Windows 7- Windows 8- Windows 8.1
Low Blue Light technology
Yes
Flicker-free technology
Yes
Component video sync
Separate sync- Sync-on-green (SOG)
EasyRead mode
Yes
Management features
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese- Traditional Chinese- Czech- German- Dutch- English- Spanish- Finnish- French- Greek- Hungarian- Italian- Japanese- Korean- Polish- Portuguese- Russian- Swedish- Turkish- Ukrainian
Plug and Play
Yes
Multimedia
Number of speakers
2
Built-in speaker(s)
Yes
RMS rated power
2 W
Built-in camera
No
TV tuner integrated
No
Design
Market positioning
Home
Heavy metals free
Hg (mercury)
Feet colour
Black
Certification
CB- CE Mark- FCC Class B- SEMKO- UKRAINIAN- ICES-003- TUV/GS- TUV Ergo- CU-EAC- EAEU RoHS
Product colour
Black
Front bezel colour
Black
International Protection (IP) code
IP65
Mean time between failures (MTBF)
70000 h
Camera
Built-in camera
No
Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-B
Number of upstream ports
1
USB Type-A downstream ports quantity
2
Headphone out
Yes
DVI port
Yes
VGA (D-Sub) ports quantity
1
DVI-D ports quantity
1
HDMI ports quantity
1.4
DisplayPorts quantity
1.2
HDCP
Yes
Audio input
Yes
PC Audio in
Yes
HDMI
Yes
HDMI version
1.4
DisplayPort version
1.2
USB Touch port
Yes
TV tuner
TV tuner integrated
No
Technical details
External power adapter
Yes
Height (without stand)
32.2 cm
Depth (without stand)
4.5 cm
Width (without stand)
37.6 cm
Mobile operating systems supported
Android 7.1- Android 7.0- Android 6.0- Android 5.0- Android 4.4
Feet colour
Black
Cable lock slot
Yes
On/off switch
Yes
Mean time between failures (MTBF)
70000 h
HDMI
Yes
Display viewable area (HxV)
337.9 x 270.3 mm
Product colour
Black
Recommended resolution
1280 x 1024 @ 60 Hz
Picture enhancement
SmartImage
Recyclable packaging material
100%
Regulatory Approvals
CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS
Front bezel colour
Black
Sustainability certificates
ENERGY STAR- TCO- RoHS- WEEE
Doesn't contain
PVC/BFR- Mercury
Power supply type
External
Multi-touch
Yes
Weight (with stand)
6.24 kg
Folding angle
70°
Touch method
Stylus- Finger- Glove
Surface hardness
7H
EasyRead mode
Yes
Touchscreen type
Capacitive
Touchscreen
Yes
Number of simultaneous touchpoints
10
Software
Windows operating systems supported
Windows 10- Windows 7- Windows 8- Windows 8.1
Bundled software
SmartControl
Ergonomics
VESA mounting
Yes
Cable lock slot
Yes
Panel mounting interface
100 x 100 mm
LED indicators
Operation- Stand-by
Tilt angle range
-5 - 90°
Height adjustment
7.6 cm
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese- Traditional Chinese- Czech- German- Dutch- English- Spanish- Finnish- French- Greek- Hungarian- Italian- Japanese- Korean- Polish- Portuguese- Russian- Swedish- Turkish- Ukrainian
Plug and Play
Yes
Height adjustment
Yes
Cable lock slot type
Kensington
Palm rejection area
30 x 30 mm
Tilt adjustment
Yes
On/off switch
Yes
Power
Power supply type
External
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
External power adapter
Yes
Power consumption (standby)
0.3 W
Power consumption (typical)
9.14 W
Power consumption (off)
0.3 W
Power consumption (PowerSave)
7.7 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
D
Energy consumption (SDR) per 1000 hours
10 kWh
Operational conditions
Non-operating altitude
0 - 12192 m
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating altitude
0 - 3658 m
Packaging content
Stand included
Yes
Manual
Yes
Cables included
VGA- HDMI- DisplayPort- USB Type-A to USB Type-B- Audio (3.5mm)- AC
Bundled software
SmartControl
Weight & dimensions
Height (without stand)
32.2 cm
Depth (without stand)
4.5 cm
Width (without stand)
37.6 cm
Width (with stand)
376 mm
Depth (with stand)
227 mm
Height (with stand)
399 mm
Weight (with stand)
6.24 kg
Weight (without stand)
3.26 kg
Package width
445 mm
Package depth
159 mm
Package height
420 mm
Package weight
7.95 kg
Packaging data
Package width
445 mm
Package depth
159 mm
Package height
420 mm
Package weight
7.95 kg
Package type
Box
Stand included
Yes
Manual
Yes
Cables included
VGA- HDMI- DisplayPort- USB Type-A to USB Type-B- Audio (3.5mm)- AC
Bundled software
SmartControl
Sustainability
Sustainability certificates
ENERGY STAR- TCO- RoHS- WEEE
Doesn't contain
PVC/BFR- Mercury
Indication
LED indicators
Operation- Stand-by
Logistics data
Harmonized System (HS) code
85285210
Other features
Height (without stand)
32.2 cm
Depth (without stand)
4.5 cm
Width (without stand)
37.6 cm
HDMI
Yes
Surface hardness
7H
Energy efficiency scale
A to G
Power supply type
External
Multi-touch
Yes
Mobile operating systems supported
Android 7.1- Android 7.0- Android 6.0- Android 5.0- Android 4.4
On/off switch
Yes
Mean time between failures (MTBF)
70000 h
Manual
Yes
Display viewable area (HxV)
337.9 x 270.3 mm
TV tuner integrated
No
Recommended resolution
1280 x 1024 @ 60 Hz
Picture enhancement
SmartImage
Recyclable packaging material
100%
Regulatory Approvals
CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS
Folding angle
70°
Touch method
Stylus- Finger- Glove
EasyRead mode
Yes
Touchscreen type
Capacitive
Touchscreen
Yes
Number of simultaneous touchpoints
10
External power adapter
Yes
Package type
Box
Front bezel colour
Black
Certificates
Certification
CB- CE Mark- FCC Class B- SEMKO- UKRAINIAN- ICES-003- TUV/GS- TUV Ergo- CU-EAC- EAEU RoHS
Philips B Line 172B9T/00 LED display 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Black
