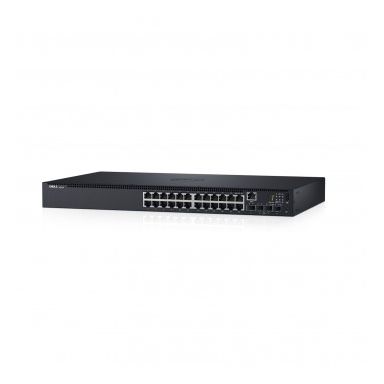

DELL N1524 Managed L3 Gigabit Ethernet (10/100/1000) Black 1U
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Switch layer
L3
Virtual LAN features
VLAN support
Yes
Number of VLANs
512
Data transmission
Number of VLANs
512
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Performance
Packet buffer memory
1.5 MB
Stackable
Yes
Maximum cable length
3 m
Physical stacking (units)
4
Flash memory
256 MB
Technical details
Physical stacking (units)
4
Form factor
1U
Product colour
Black
Stackable
Yes
Rack mounting
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
USB 2.0 ports quantity
1
Network
Networking standards
IEEE 802.1ab-IEEE 802.1D-IEEE 802.1p-IEEE 802.1Q-IEEE 802.1s-IEEE 802.1v-IEEE 802.1w-IEEE 802.1x-IEEE 802.2-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ac-IEEE 802.3ad-IEEE 802.3ae-IEEE 802.3at-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Number of VLANs
512
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
1.5 MB
Flash memory
256 MB
Design
Form factor
1U
Product colour
Black
Stackable
Yes
Rack mounting
Yes
Power
Power consumption (typical)
40 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
-40 - 65%
Heat dissipation
103.1 BTU/h
Weight & dimensions
Width
440 mm
Depth
257 mm
Height
43.5 mm
Weight
3 kg
DELL N1524 Managed L3 Gigabit Ethernet (10/100/1000) Black 1U
| Length | 25.70 cm |
| Width | 44.00 cm |
| Height | 4.35 cm |
| Weight | 3.000000 kgs |
