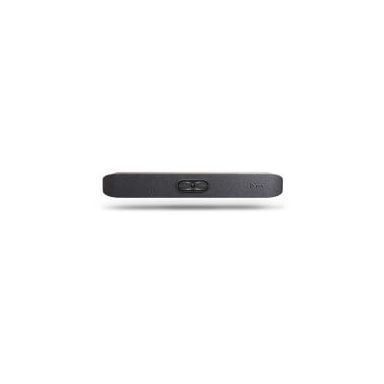

POLY Studio X30 video conferencing system Group video conferencing system 6 person(s) Ethernet LAN

Product type

Group video conferencing system

Number of persons

6 person(s)

Product colour

Black

Wall mountable

Yes

Bluetooth

Yes

Bluetooth version

5.0

Product type

Group video conferencing system

Number of persons

6 person(s)

Product colour

Black

Wall mountable

Yes

Bluetooth

Yes

Bluetooth version

5.0

Harmonized System (HS) code

85176990

HD type

4K Ultra HD

Digital zoom

4x

Video formats supported

H.239, H.264, H.265

Supported video modes

720p, 1080p, 2160p

Supported graphics resolutions

800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 3840 x 2160

Maximum frame rate

60 fps

Voice codecs

G.711, G.719, G.722, G.722.1, G.722.1C, G.728, G.729A

Built-in speaker(s)

Yes

Audio formats supported

AAC-LD

Video formats supported

H.239, H.264, H.265

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB connector type

USB Type-A, USB Type-C

HDMI ports quantity

2

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Security algorithms

128-bit AES, 256-bit AES, FIPS 140-2, SSL/TLS

Field of view (FOV) angle

120°

Digital zoom

4x

Display

LCD

Display diagonal

20.3 cm (8")

Display resolution

1280 x 800 pixels

Touchscreen

Yes

Number of microphones

4

Security algorithms

128-bit AES, 256-bit AES, FIPS 140-2, SSL/TLS

Harmonized System (HS) code

85176990

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

15 - 80%

Heat dissipation

65 BTU/h

AC input voltage

120 - 230 V

AC input frequency

50 - 60 Hz

Width

441.8 mm

Depth

61.6 mm

Height

62.5 mm

Weight

730 g
