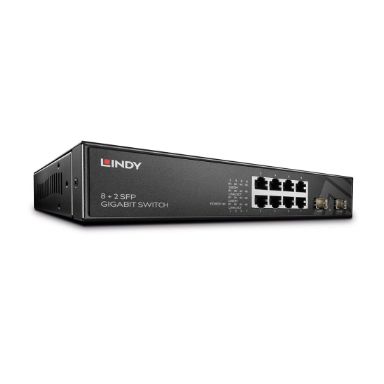

Lindy 25047 network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Out of Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RS-232
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Virtual LAN features
Port-based VLAN,Tagged VLAN,Voice VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Port-based VLAN,Tagged VLAN,Voice VLAN
Performance
Packet buffer memory
4 MB
Stackable
Yes
Auto-negotiation
Yes
Firmware upgradeable
Yes
Technical details
Product colour
Black
Stackable
Yes
Housing material
Metal
Firmware upgradeable
Yes
Rack mounting
Yes
Management features
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Optical fiber
Fiber ethernet cabling technology
100BASE-X,1000Base-X
Data transmission
Jumbo frames
9600
Packet buffer memory
4 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Jumbo frames support
Yes
Forwarding rate
14.88 Mpps
Security
Authentication
Port-based authentication
Security algorithms
SNMP,SNMPv3
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Password protection
Yes
DHCP features
DHCP relay,DHCP server,DHCP snooping
Certificates
Certification
CE / FCC / RoHS 2.0 / REACH
Memory
Packet buffer memory
4 MB
Design
Product colour
Black
Stackable
Yes
LED indicators
Activity, Link, Power
Housing material
Metal
Certification
CE / FCC / RoHS 2.0 / REACH
Rack mounting
Yes
Indication
LED indicators
Activity, Link, Power
Power
Power consumption (max)
15 W
AC input voltage
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-20 - 80 °C
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
230 mm
Depth
124 mm
Height
44 mm
Weight
1.65 kg
Packaging data
Rack mount kit
Yes
Manual
Yes
Cables included
AC, RS-232
Packaging content
Rack mount kit
Yes
Manual
Yes
Cables included
AC, RS-232
Lindy 25047 network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
| Length | 12.40 cm |
| Width | 23.00 cm |
| Height | 4.40 cm |
| Weight | 1.65 kgs |
