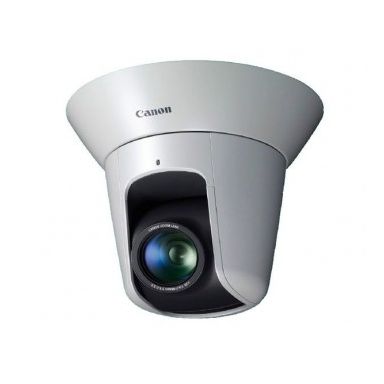

Canon VB-M44 PTZ Network Camera
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Performance
Infrared (IR) cut-off filter
Yes
Number of languages
12
Processor model
Canon DIGIC DV III
PTZ modes
Digital PTZ
Type
IP security camera
Connectivity technology
Wired
PTZ control (Pan/Tilt/Zoom)
Yes
Day/night mode
Yes
Design
Form factor
Dome
Product colour
Silver
Mounting type
Ceiling
Camera
Minimum illumination
0.003 lx
Viewing angle horizontal
60.4°
Viewing angle vertical
35.1°
Tilt angle range
-90 - 10°
Tilt speed
150 °/sec
Pan range
-170 - 170°
Pan speed
150 °/sec
Camera shutter speed
1 - 1/6000 s
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 3 mm (1 / 3")
Lens system
Maximum aperture number
3.5
Auto focus
Yes
Minimum aperture number
1.6
Zoom capability
Yes
Optical zoom
20x
Digital zoom
20x
Focal length range (f-f)
4.7 - 94 mm
Video
Noise reduction
Yes
Privacy masking
Yes
Image stabilizer
Yes
Video compression formats
H.264
Maximum resolution
1280 x 960 pixels
Frame rate
30 fps
Video streaming
Yes
Total megapixels
1.3 MP
Audio
Audio system full duplex
Yes
Audio formats supported
G.711
Networking
Networking standards
IEEE 802.1xIEEE 802.3at
Number of users
50 user(s)
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
SDSDHCSDXC
Internal memory
5 MB
Ports & interfaces
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Connectivity technology
Wired
Security
Alert notification type
E-mail
Intelligent Video Surveillance (IVS) system features
Abandoned objectIntrusion
Security algorithms
EAP-MD5EAP-PEAPEAP-TLSEAP-TTLSIPSecSNMPSNMPv3SSL/TLS
Password protection type
SupervisorUser
Management features
Web browser
Yes
Reset button
Yes
Behavior analysis
Object removal detection
Power
Power source type
PoE
Power consumption (max)
9.9 W
Power consumption (Power over Ethernet (PoE))
9.2 W
Power over Ethernet (PoE)
Yes
AC input voltage
100-240 V
Power consumption (typical)
8.6 W
DC-in jack
Yes
Operational conditions
Operating temperature (T-T)
-10 - 50 °C
Operating relative humidity (H-H)
5 - 85%
Weight & dimensions
Height
155 mm
Diameter
13.2 cm
Weight
1.14 kg
Packaging content
Number of cameras
1
Technical details
Audio input
3.5mm
Other features
Video compression formats
H.264
