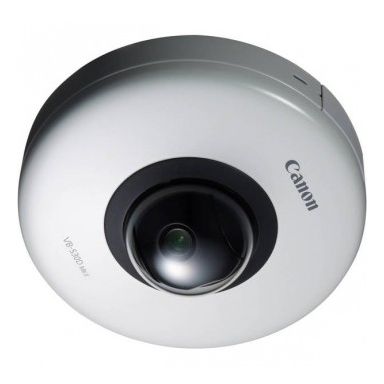

Canon VB-S30D Mk II PTZ Network Camera
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Performance
Preset points
Yes
Light exposure modes
AutoManualShutter priority AE
Type
IP security camera
Connectivity technology
Wired
Placement supported
Indoor
Day/night mode
Yes
Design
Form factor
Dome
Product colour
Grey
Mounting type
Ceiling
Camera
Minimum illumination
0.5 lx
Tilt angle range
-90 - 0°
Tilt speed
120 °/sec
Pan range
-175 - 175°
Pan speed
120 °/sec
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 4.85 mm (1 / 4.85")
Lens system
Maximum aperture number
2.6
Closest focusing distance
0.3 m
Minimum aperture number
1.4
Focus
Motorized/Manual
Zoom capability
Yes
Optical zoom
3.5x
Digital zoom
4x
Focal length range (f-f)
2.25 - 7.88 mm
Video
Automatic gain control
Yes
Privacy masking
Yes
Video compression formats
H.264M-JPEG
Maximum resolution
1920 x 1080 pixels
Frame rate
30 fps
Total megapixels
2.1 MP
Audio
Voice codecs
G.711Mu
Networking
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1xIEEE 802.3at
Number of users
31 user(s)
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Wi-Fi
No
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash)MicroSDHCMicroSDXC
Ports & interfaces
Microphone in
Yes
Interface
RJ-45
Connectivity technology
Wired
Security
Intelligent Video Surveillance (IVS) system features
IntrusionScene change
Power
Power source type
PoE
Power consumption (max)
7.8 W
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
-10 - 50 °C
Storage temperature (T-T)
-30 - 60 °C
Operating relative humidity (H-H)
5 - 85%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Height
54 mm
Diameter
12 cm
Weight
270 g
Packaging content
Number of cameras
1
Other features
Focus
Motorized/Manual
Video compression formats
H.264M-JPEG
Noise detection
Yes
Canon VB-S30D Mk II PTZ Network Camera
