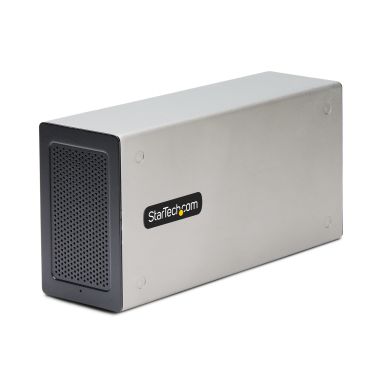

StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards

Thunderbolt 3 ports quantity

2

Host interface

Thunderbolt 3

DisplayPorts quantity

1

Microphone in

No

Connectivity technology

Wired

PCIe version

3.0

PCI Express x16 slots

2

DisplayPort version

1.4

Ethernet LAN

No

Number of displays supported

2

Product colour

Silver

Card reader integrated

No

LED indicators

Power

Rubber feet

Yes

HD type

8K Ultra HD

Housing material

Aluminium

Maximum refresh rate

60 Hz

Product colour

Silver

Sustainability compliance

Yes

Sustainability certificates

RoHS, Trade Agreements Act (TAA)

Compliance certificates

RoHS, Trade Agreements Act (TAA)

Products per master (outer) case

3 pc(s)

Master (outer) case width

375 mm

Master (outer) case length

455 mm

Master (outer) case height

325 mm

Built-in fan

Yes

Number of fans

1 fan(s)

Fan diameter

6 cm

Card reader integrated

No

Power source type

DC

Input current

3 A

Power consumption (max)

120 W

Compatible power plug types

AU, EU, JP, UK, US

AC input voltage

100 - 240 V

Output voltage

12 V

Output current

10 A

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

LED indicators

Power

Operating temperature (T-T)

5 - 65 °C

Storage temperature (T-T)

-20 - 65 °C

Operating relative humidity (H-H)

20 - 80%

Sustainability compliance

Yes

Sustainability certificates

RoHS, Trade Agreements Act (TAA)

Weight

1.6 kg

Width

281 mm

Depth

84 mm

Height

142 mm

Package weight

3.4 kg

Package width

285 mm

Package depth

353 mm

Package height

143 mm

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Product colour

Silver

LED indicators

Power

Rubber feet

Yes

Package weight

3.4 kg

Package width

285 mm

Package depth

353 mm

Package height

143 mm

Quick start guide

Yes

Cables included

Thunderbolt

AC adapter included

Yes

Products per master (outer) case

3 pc(s)

Master (outer) case width

375 mm

Master (outer) case length

455 mm

Master (outer) case height

325 mm

Chipset

Titan Ridge DSL7440 (x2), Ti TPS65983B (x2)
